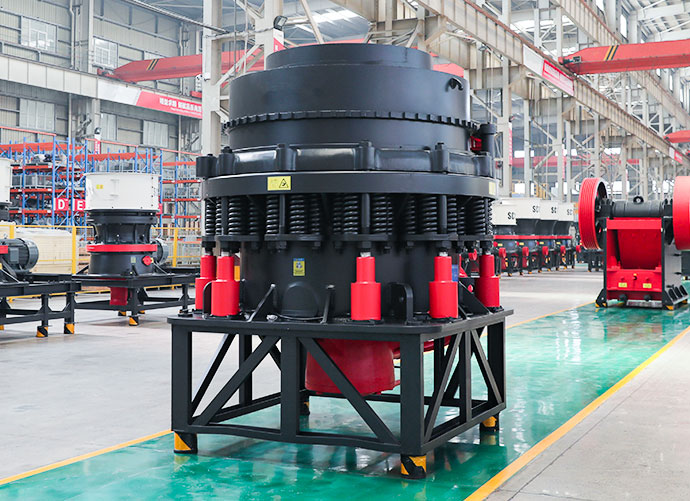

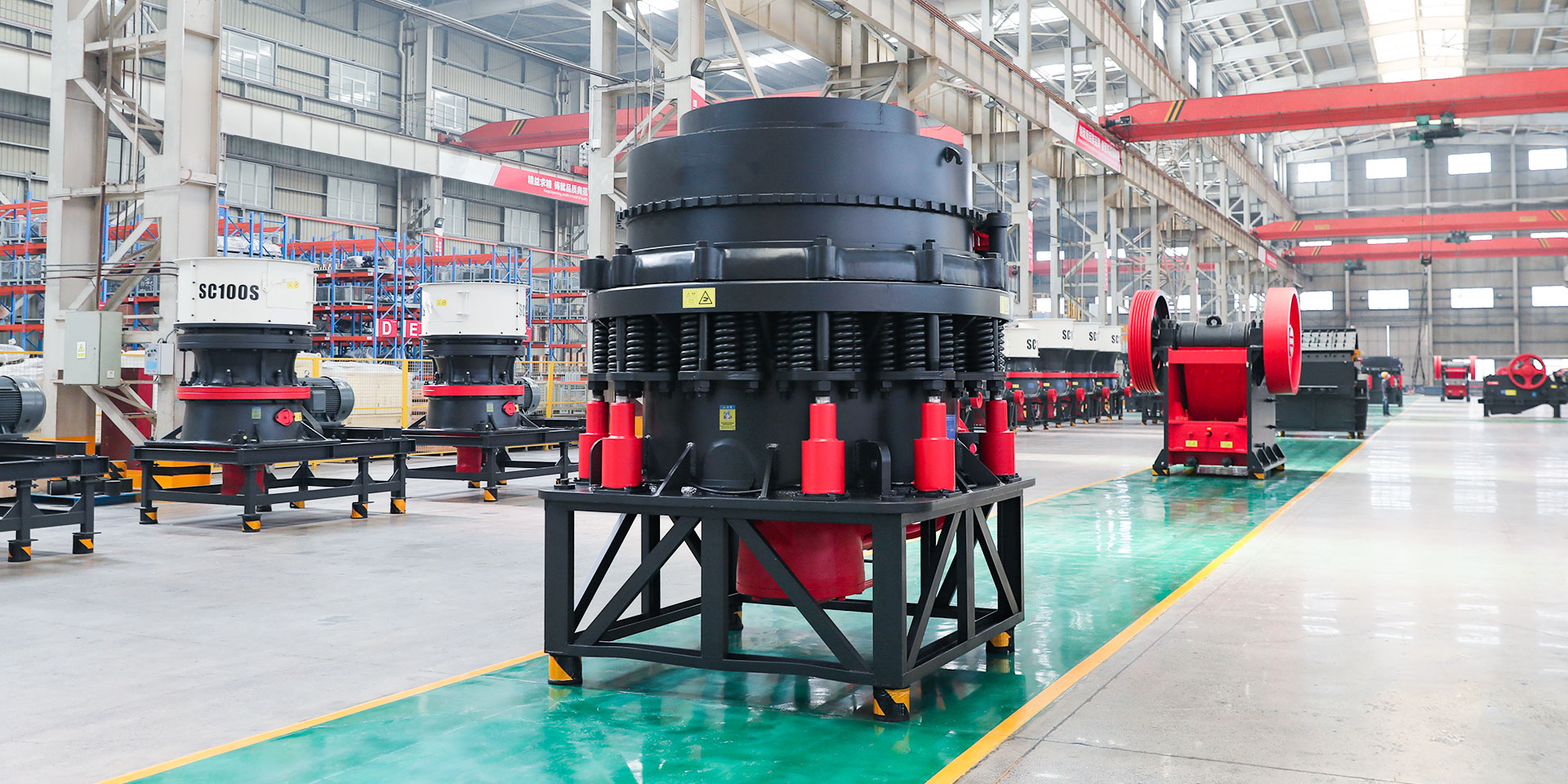

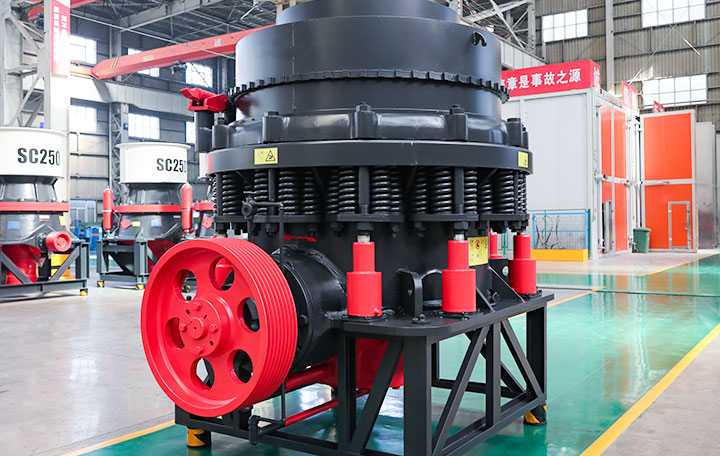

Compound Cone Crusher

Compound Cone Crusher

The compound cone crusher adopts the best combination of crushing frequency and eccentricity, making it have a higher degree of crushing, higher crushing capacity compared with similar machine models.

  • Production Capacity
    27-1814t/h

  • Feed size:
    ≤314mm

  • More than 200
    kinds of materials

Applicable materials: Pebbles, Granites, Dolomites, Basalt, Iron Ore, Limestone, Quartzite, Diabase, Iron Ore, Gold Ore, Copper Ore etc.

Send e-mail inquire@sinoftm.com

Introduction:

Compound Cone Crusher

The compound cone crusher adopts the best combination of crushing frequency and eccentricity, making it have a higher degree of crushing, higher crushing capacity compared with similar machine models. At the same time, it increases lamination function between material particles, effectively improving the three-dimensional shape of the crushed material. The use of hydraulic insurance, hydraulic locking, hydraulic adjustment, hydraulic cavity cleaning and other devices make the operation easier to automate. Under normal use, the equipment adopts optimized design, making trouble-free operation rate over 95%. Compound cone crusher is mainly used for the secondary crushing in mining, metallurgy, construction and other industries.

Performance Advantages

Compound Cone Crusher

1. Strong crushing force, high efficiency, high throughput, low cost, easy adjustment, and economical use.

2. The driving axle is equipped with conical stick bearing at both ends, power driven is achieved by heavy conical bevel gear, and the bearing pedestal adopts skeleton sealing ring to prevent lubricant leakage.

3. The hydraulic adjustment mechanism is easy for quick adjustment of discharge port size.

4. The adoption of a set of lubrication system including oil pump, oil tank and pipeline makes the crusher automatically shut down when the oil temperature is high or the oil speed is too slow.

Technical Parameter:

Type Model Diameter
of large
end of
crushing
 cone(mm)
Adjusting
 Range of
Discharge
Opening(mm)
Feed
opening
size of the
open edge
when
recommending
 the min.
Discharge
opening
(mm)
Max.feeding
size(mm)
Processing
capacity
(t/h)
Main
motor
 power
(kw)
Machine
weight
(kg)
PSG 900 0910 914 (3′) 9-22 102 85 45-91 6P   75 9980
0917 13-38 175 150 59-163
0904 3-13 41 35 27-90
0906 3-16 76 65 27-100
PSG 1300 1313 1295 (4¼′) 13-31 137 115 109-181 6P   160 22460
1321 16-38 210 178 132-253
1324 19-51 241 205 172-349
1306 3-16 64 54 36-163
1308 6-16 89 76 82-163
1310 8-25 105 89 109-227
PSG 1600 1620 1676 (5½′) 16-38 209 178 181-327 6P   250 43270
1624 22-51 241 205 258-417
1626 25-64 269 228 299-635
1607 5-13 70 60 90-209
1608 6-19 89 76 136-281
1613 10-25 133 113 190-336
PSG 2100 2127 2134 (7′) 19-38 278 236 544-1034 6P   400 86730
2133 25-51 334 284 862-1424
2136 31-64 369 314 1125-1814
2110 5-16 105 89 218-463
2113 10-19 133 113 404-580
2117 13-25 178 151 517-680
