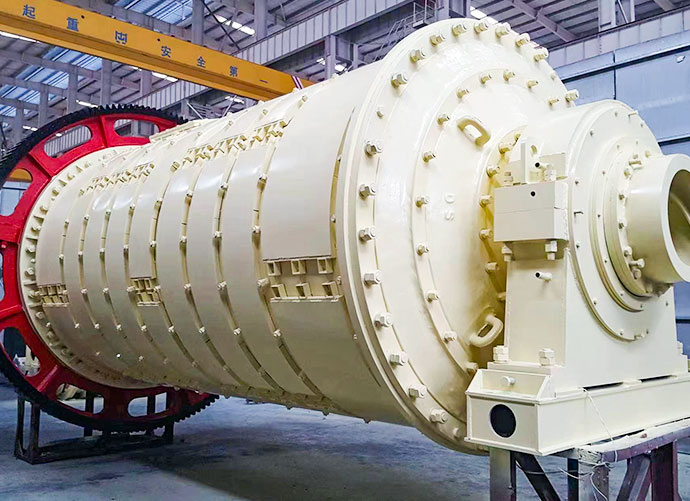

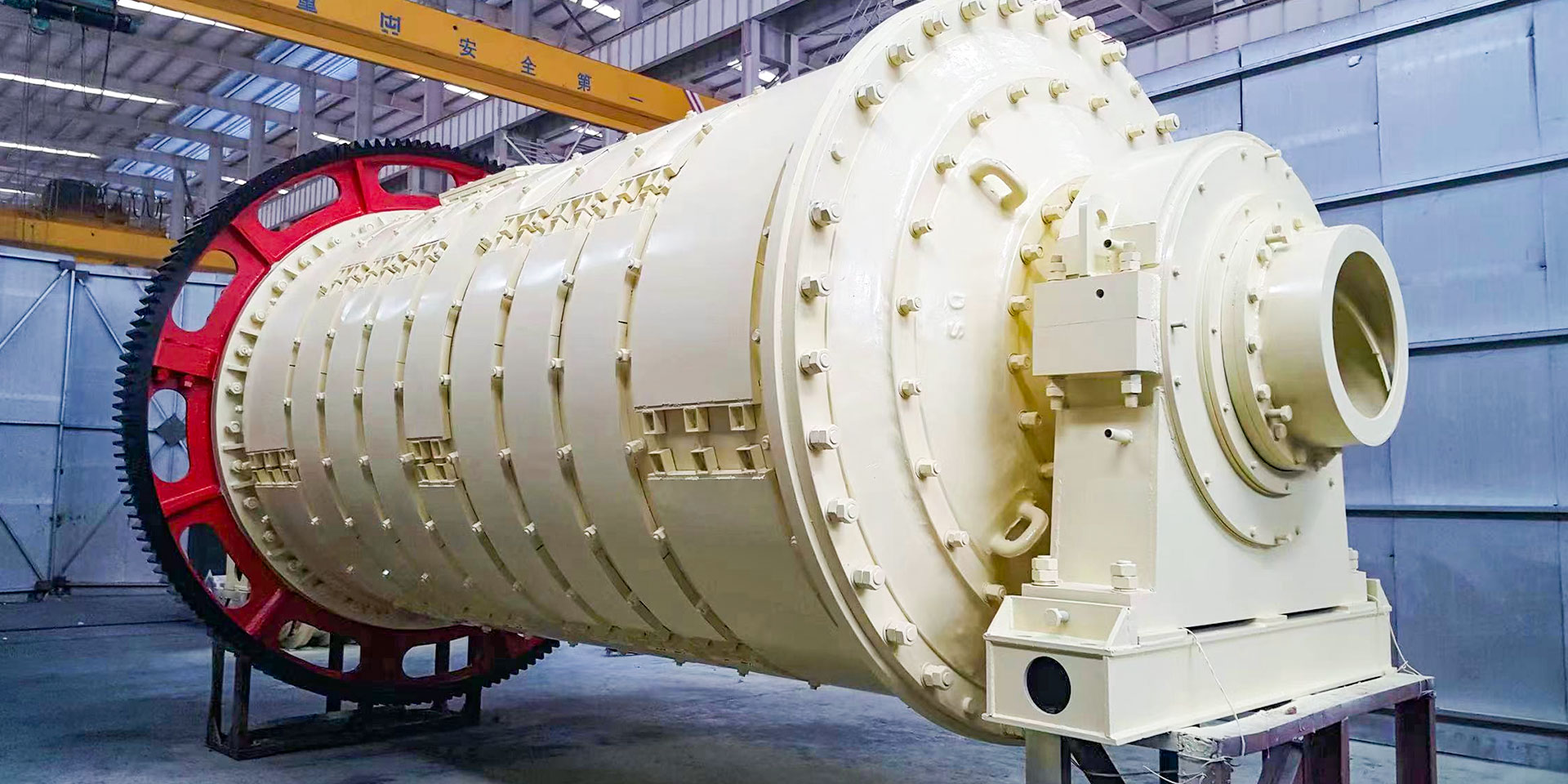

Air-swept Coal Mill

Air-swept Coal Mill Air-swept Coal Mill
  • Production Capacity 8-43t/h
  • Product specificationsΦ2.2×4.4m-Φ3.8×7.25+3.5m

Processing Materials: iron ore, copper ore, gold ore, limestone, calcite, barite, dolomite, potassium feldspar, marble, talcum, gypsum.

CONTACT US

High-quality products

are our core competitiveness

Internal Structure

Production Introduction

Coal mill is a kind of ball mill, which is often used to crush and grind coal bricks into powder, so it is also called coal grinding mill. Coal mill is the main equipment in cement plant, which is used for drying and grinding of coal. It has wide applications such as coal mill in power plant, metallurgical, building materials and chemical industry also has wide application, which is o suitable for making coal and mineral material powder. Coal mill has reasonable structure and high grinding efficiency, which is the ideal equipment for coal preparation.

CONTACT US

THE MAIN BENEFITS AND ADVANTAGES

Unique structure

1. High grinding efficiency.

Coal mill has combination design of the grinding liner, which adopts different lining board structure according to different stages of the coal mill, so the grinding efficiency has been greatly improved.

2. On-demand design, flexible configuration.

According to different types, coal mill can adopts edge transmission or center transmission, which has flexible configuration.

Easy operation

Fote Machinery has high performance coal mill for sale, which has advanced technology, simple structures and complete models. Last but not least, the coal mill price of our company is the most reasonable among other coal mill manufacturers. If you are interested, please chat with us online or write emails to us. Thank you!

THE MAIN BENEFITS

A super-large-scaled modern green industrial workshop 260000 square meters, large and medium-sized gold processing, maohan, assembly equipment more than 600 sets.

CONTACT US

Air-swept Coal MillTechnical Parameter

TO VIEW MORE
Spec. (m)Item Φ1.7×2.5 Φ2.2×4.4 Φ2.4×4.75 Φ2.4×4.5+2 Φ2.6×5.25+2.25 Φ2.8×5+3 Φ3.0×6.5+2.5 Φ3.2×6.75+2 Φ3.4×6+3 Φ3.8×7+2.5
Speed(r/min) 24.5 22.4 20.4 20.4 19.7 18.3 18.3 16.9 17.5 16.4
Capacity(t/h) 3-5 8-9 12-14 11-12 13-14 16-17 19-20 25-30 28-30 38-40
Feeding Size(mm) <25 <25 <25 <25 <25 <25 <25 <25 <25 <25
Grinding Media Loading(t) 7.5 20 22 22.5 28 32 43 50 55 80
Main Reducer ZD40 ZD60 ZD60 ZD60 ZD70
MBY450
ZD70
MBY500
ZD80
MBY560
JDX560 JDX710 MBY800
Main Motor(kw) 95 250 280 315 400 500 630 710 800 1250
Weight(t) 29 46 54 76 98 107 124 148 162 215
Spec.(m) Item Capacity
(t/h)
Feeding Size
(mm)
Φ1.7×2.5 3-5 <25
Φ2.2×4.4 8-9 <25
Φ2.4×4.75 12-14 <25
Φ2.4×4.5+2 11-12 <25
Φ2.6×5.25+2.25 13-14 <25
Φ2.8×5+3 16-17 <25
Φ3.0×6.5+2.5 19-20 <25
Φ3.2×6.75+2 27-29 <25
Φ3.4×6+3 28-30 <25
Φ3.8×7+2.5 38-40 <25
