Description Of Monocular Cooler

Description Of Monocular Cooler

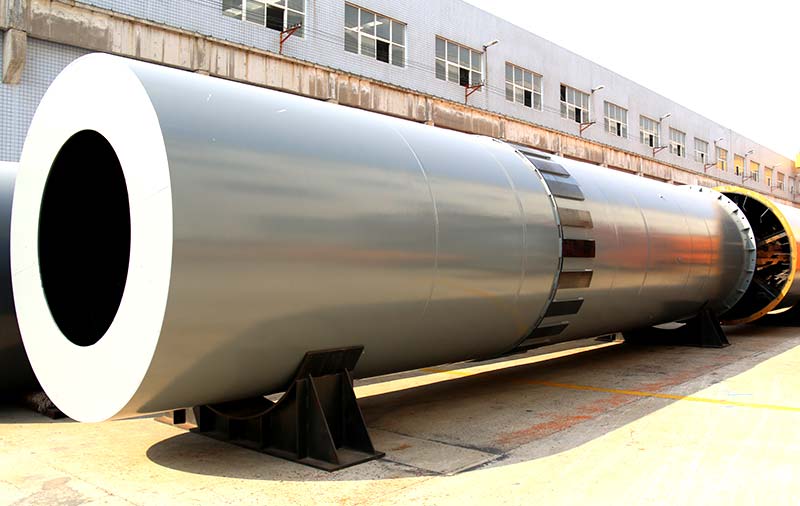

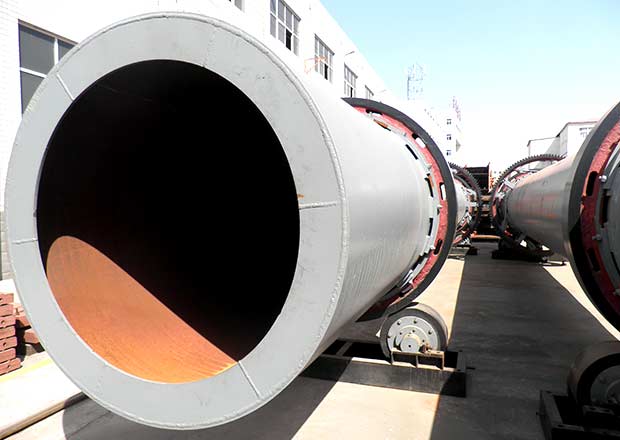

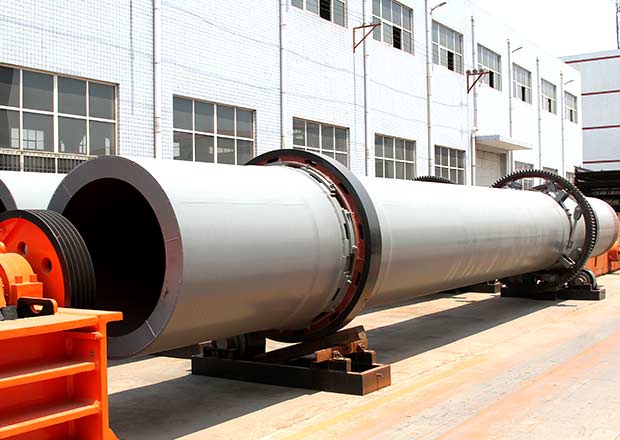

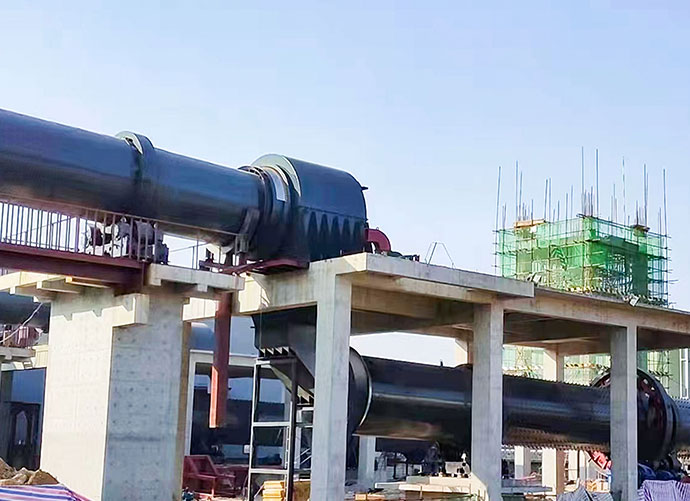

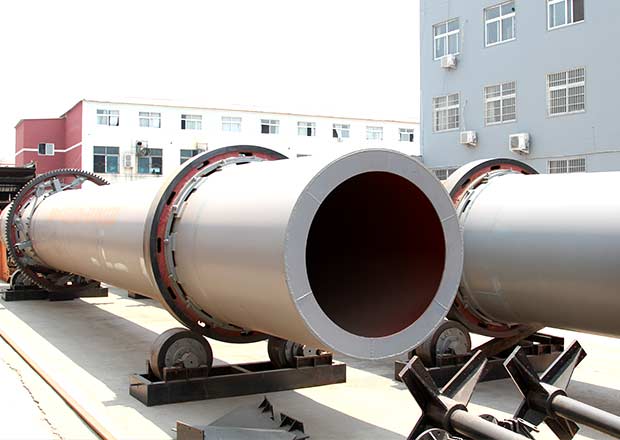

Monocular cooler is suitable for cooling the powdery and granular clinker from rotary kiln. It is the important supporting equipment for rotary kiln.

  • Production Capacity
    2-36t/h

  • Product specifications
    Φ1.5×15m-Φ3.3×40m

  • More than 200
    kinds of materials

Material:Gray stones, cement clinker, bauxite, activated lime, aluminum hydroxide, kaolin etc.

Send e-mail inquire@sinoftm.com

Introduction:

Description Of Monocular Cooler

Monocular cooler is suitable for cooling the powdery and granular clinker from rotary kiln. It is the important supporting equipment for rotary kiln. It can absorb the large amount of heat energy carried by high-temperature materials, so that the combustion-supporting air of the kiln can be preheated to a high temperature in order to reach the effect of strengthening calcinations and reducing heat consumption.

Monocular cooler is mainly used to remove the partial moisture and reduce grain temperature of materials. Rotary cooler is widely used in cement, lime, ceramsite and metallic magnesium production field.

Outstanding Advantages

Description Of Monocular Cooler

1.Rapid cooling The feed end of our monocular cooler adopts the advanced KID and pulsating wind-supply system, so as to make the discharged high-temperature clinker be quickly cooled.

2.Good cooling effect During the work of monocular cooler, the clinker is raised repeatedly in the lifting zone and scattered evenly. Then cooling air and hot clinker have a strong heat exchange to realize good cooling effect.

3.Supplying high thermal efficiency Rotary cooler can bring the hot air from clinker into kiln as a secondary circulating air, which is good for improving the thermal efficiency of rotary kiln.

4.Maintaining the high quality of clinker The 1000-1200℃clinkers from the rotary kiln rotate with the cylinder of monocular cooler, and have the adequately heat exchange with the cool air. When the material is cooled to below 200 ℃, its quality and grindability is still good.

Technical Parameter:

Spec./m
(Dia×Length)
Capacity
(t/h)
Installation
Obliquity
(%)
Main Reducer

Main Motor
(kw)
Weight
(t)
Φ1.5×15 2~3 3~5 ZQ500 15 28
Φ1.5×20 3~4 3~5 ZQ500 15 35
Φ1.8×18 4~6 3~5 ZQ500 18.5 47
Φ2.0×22 7~8.5 3~5 ZQ500 22 61
Φ2.2×18 7~8.5 3~5 ZQ500 22 64
Φ2.2×22 8~10 3~5 ZQ650 30 73
Φ2.4×24 12~15 3~5 ZS125 45 98
Φ2.5×25 15~20 3~5 ZS125 55 110
Φ2.8×28 16~22 3~5 ZL100 55 130
Φ3.0×30 20~25 3~5 ZL115 75 169
Φ3.2×36 28~32 3~5 ZL115 90 200
Φ3.3×40 32~36 3~5 ZI130 132 237
Φ3.6×36 35~38 3~5 ZSY450-28 185 318
Φ4.0×36 50~60 3~5 ZSY450-25 220 348
Φ4.0×45 60~70 3~5 ZSY450-25 250 414
Φ4.5×50 70~75 3~5 ZSY500-25 315 576
