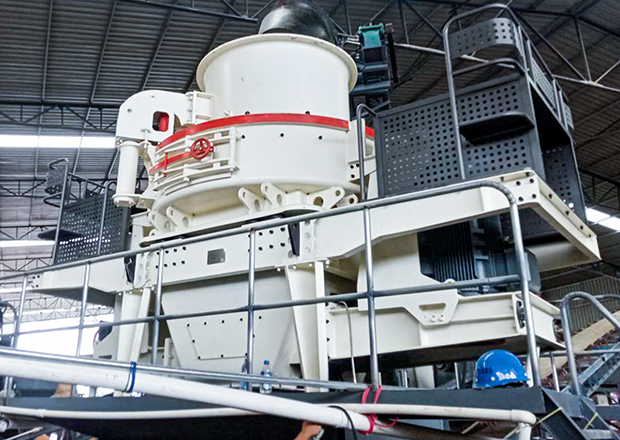

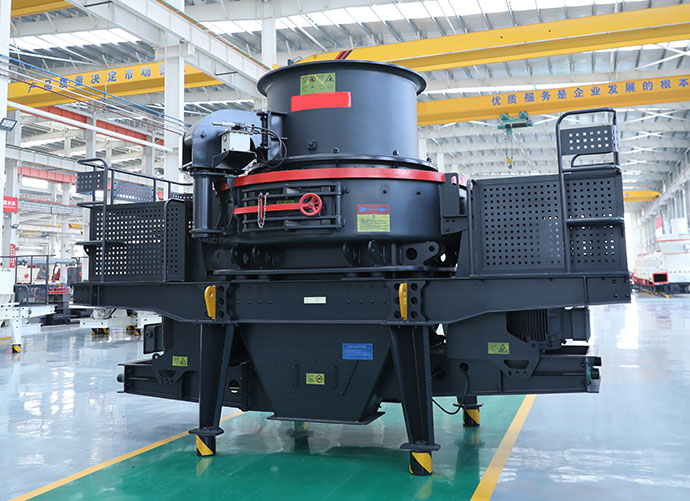

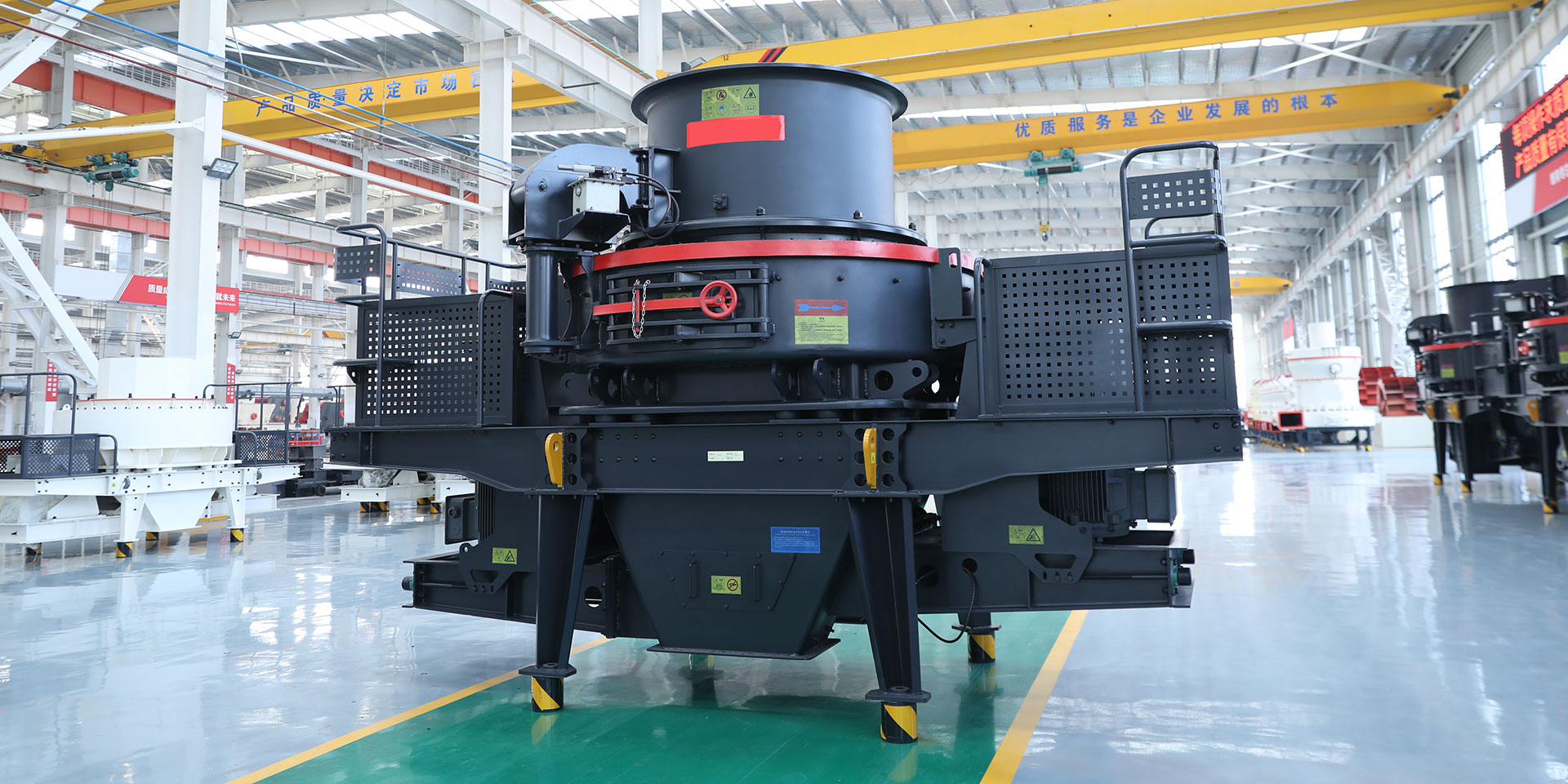

HVI Sand Maker

HVI Sand Maker

Efficient shaft impact crusher is a new generation of design concepts in one of the new generation of sand making equipment

  • Throughput
    70-585t/h

  • Feed size:
    <55mm

  • More than 200
    kinds of materials

Applicable materials: Pebbles, granite, basalt, iron ore, limestone, quartz, diabase and so on

Send e-mail inquire@sinoftm.com

Introduction:

High-efficiency shaft impact crusher is a new generation sand making and shaping equipment that integrates new design concepts, adopts new four-port impeller deep cavity design structure and special sealing structure, and has a number of patented technologies. It is widely used for medium crushing, fine crushing (sand granulation) and shaping in metal and non-metallic ores, building materials, refractory materials, artificial sand and a variety of metallurgical slag. High-efficiency shaft impact is especially suitable for providing high-quality gravel aggregates for many areas such as high-rise buildings, highway (railway) construction, municipal engineering, large-scale water conservancy facilities, concrete mixing plant and so on, which is a good choice for producing artificial sand.

High-Efficiency Vertical Shaft Impact Crusher (Sand Maker)

Outstanding Advantages

1.Unique design, efficient crushing Impeller structure with a unique four-port deep cavity design, which improves the material throughput more than 30% and effectively improves the crushing efficiency.

2.New design, long service life Compared with traditional whole surrounding guard board design, HVI sand maker adopts newly upper and lower two surrounding guard board combination design, they can be turned up and down after local wear, which greatly improves the material utilization and prolongs the service life.

3.Process upgrade, reduce costs Butt Ends adopt upgrade technology of upper and lower modular design. Users just need to replace the worn butt Ends, which is effectively prevent damage to the vertical plate and can reduce cost more than 30%.

4.Flexible feed, efficiency increase The use of advanced bulk tray design can achieve fast conversion of center feed and waterfall falling feed, effectively reduce downtime, adjustment time and improves work efficiency.

5.Modular design, optional lubrication mode HVI sand maker breaks the traditional design, using world's advanced bearing chamber dilute oil and grease modular design, which can achieve the overall interchange. Users can choose different lubrication method according to different needs, which is easy to operate and convenient to maintain.

Technical Parameter:

Model Sand Shaping

Sand Making

Sand Shaping

Sand Making

Motor Power(kw)
Max.Feeding Size (mm) Throughput(t/h)
HVI 0815  <30 <35  70-140  130-230  2×75
HVI 0818 < 30 < 35 80-190 165-283 2×90
HVI 0922 <35 <40 105-145 220-330 2×110
HVI 0926 <35 <40 120-190 240-380 2×132
HVI 1032 <40 <45 181-278 246-356 2×160
HVI 1040 <40 <45 262-284 350-440 2×200
HVI 1250 <45 <50 345-371 414-540 2×250
HVI 1263 <50 <55 453-489 521-585 2×315
