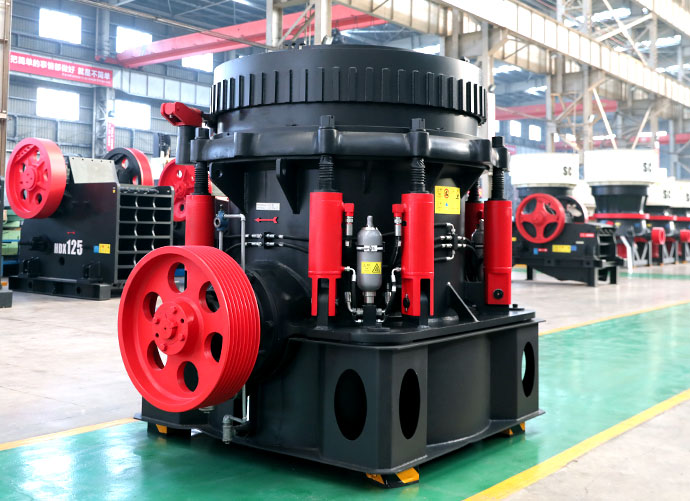

Hydraulic Cone Crusher

Hydraulic Cone Crusher

All-hydraulic operation, easy to use, easy to automate, its reliability and life expectancy greatly increased

  • Production Capacity
    36-1814t/h

  • Feed size:
    ≤314mm

  • More than 200
    kinds of materials

Applicable materials: Quartz stone, river pebbles, calcite, dolomite, granite, basalt, iron ore, limestone, diabase, etc.

Send e-mail inquire@sinoftm.com

Introduction:

Hydraulic cone crusher mainly consists of crack, transmission device, eccentric shaft, bowl type bearing tile, crushing cone, crushing wall, rolling mortar wall, adjusting device, adjusting sleeve, hydraulic control system, hydraulic insurance system, dustband, materials distributed tray, adjustable discharging port, hydraulic station and other components. Through the motor drive, hydraulic cone crusher forces the eccentric shaft to do cyclical swinging under the axis line, making the surface of crushing wall sometimes close to the rolling mortar wall, and sometimes far away from the rolling motor wall, and then making the material in the crushing cavity being crushed due to extrusion and grinding.

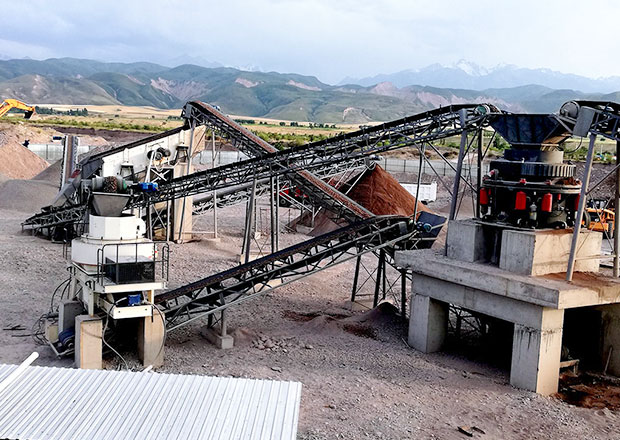

Hydraulic cone crusher is mainly used in sand and gravel industry, for medium and fine crushing of a variety of mine and rocks such as iron ore, non-ferrous metal ore, basalt, granite, limestone, sandstone, pebbles and so on.

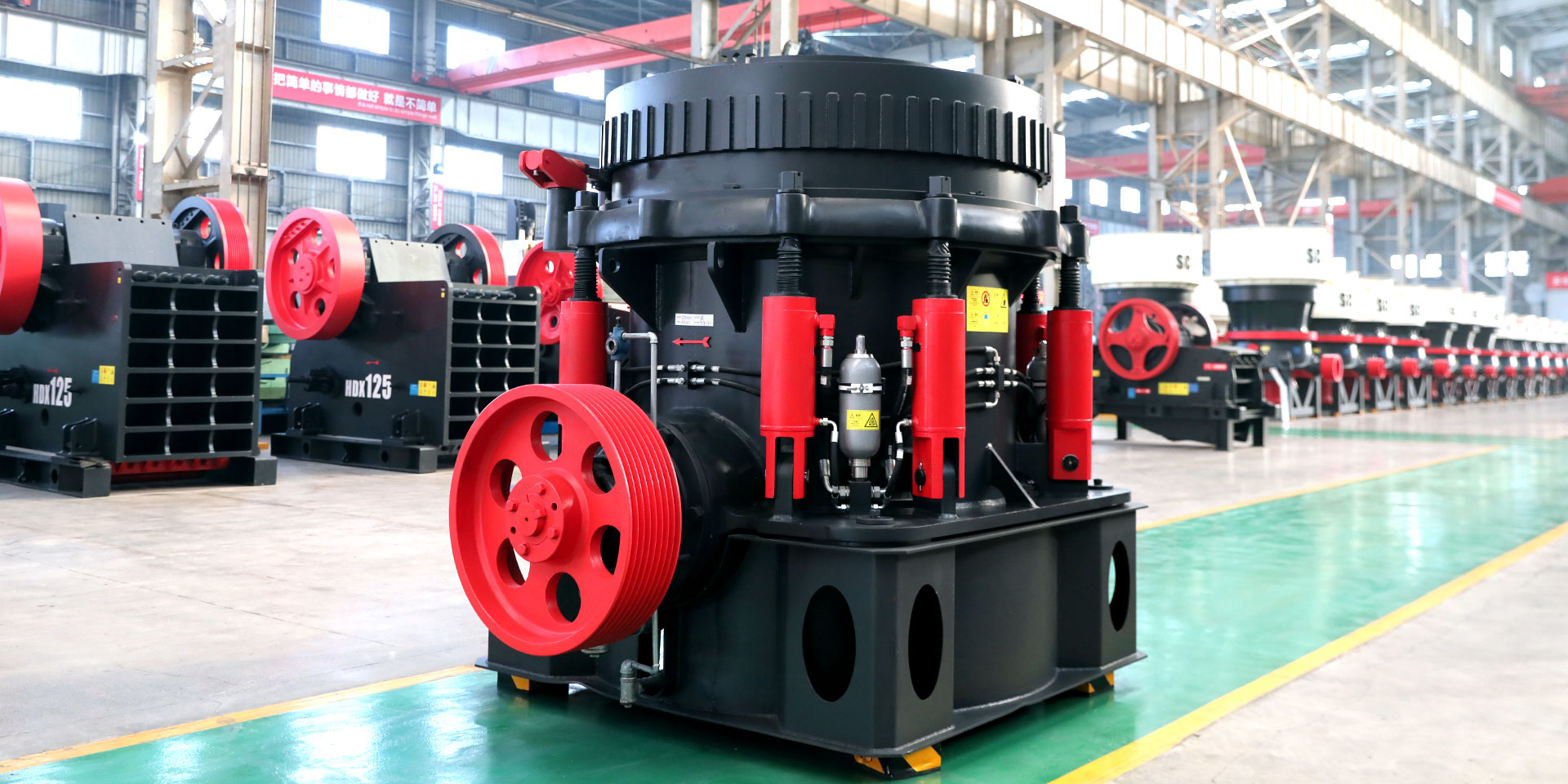

Hydraulic Cone Crusher

Performance Advantages

1. Large crushing ratio, high production efficiency.

2. Diversified product specifications fully meet customers' needs.

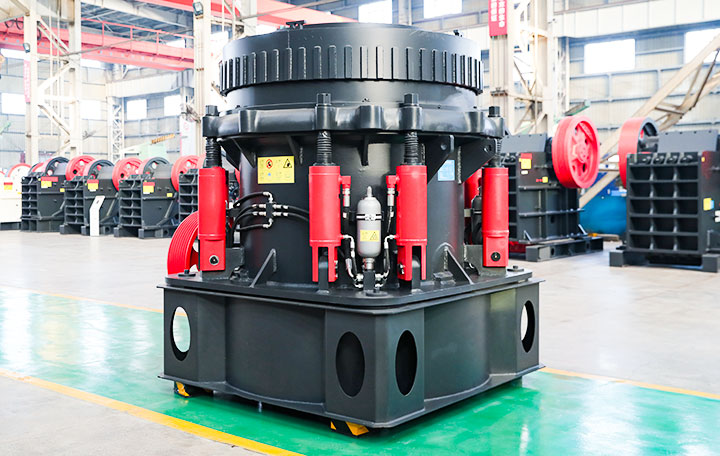

Hydraulic Cone Crusher

3. All parts adopt wear-resistant protection, which minimizes maintenance costs and makes the service life increase by more than 30%.

4. The adoption of hydraulic adjustment, thin oil lubrication and effective labyrinth seal fundamentally eliminate the oil and water mixing and other common failures of the original spring cone crusher.

Technical Parameter:

Model Cavity
Diameter of
large end of
crushing cone (mm)

Adjusting Range of
Discharge  Opening (mm)

Feed Opening Size
of  the Opening
Edge when Recommending
Min. Discharging Gate Opening (mm)

Max.feeding size
(mm)

Processing capacity
(t/h)

Main motor power
(kw)

Machine Weight
(t)
FTMGYS 300 C1 910 13~38 175 150 81~180 6P  90 10
C2 9~22 102 85 60~180
F1 3~16 76 65 36~145
F2 3~13 41 35 36~130
FTMGYS 400 C1 1200 19~51 241 205 207~400 6P  200 20
C2 16~38 210 178 162~350
C3 13~31 137 115 126~310
F1 8~25 105 89 109~230
F2 6~16 89 76 82~230
F3 3~16 64 54 40~230
FTMGYS 500 C3 1600 25~64 269 228 280~650 6P  280 40
C1 22~51 241 205 258~450
C2 16~38 209 178 180~410
F1 10~25 133 113 162~355
F2 6~19 89 76 136~330
F3 5~13 70 60 90~300
FTMGYS 700 C1 2000 31~64 369 314 1125~1814 6P  480 90
C2 25~51 334 284 862~1424
C3 19~38 278 236 544~1034
F1 13~25 178 151 517~680
F2 10~19 133 113 404~580
F3 5~16 105 89 218~463
