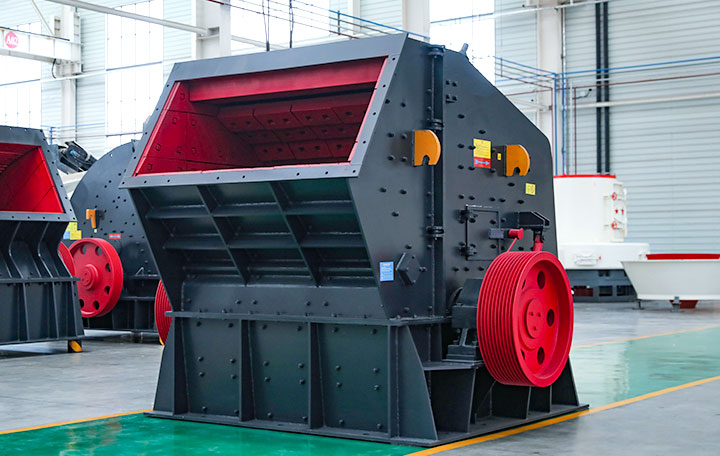

Impact Crusher

Impact Crusher

This series of impact crusher is a new type of impact crusher developed by our company according to the specific conditions of the domestic gravel industry, and combined advanced technology at home and abroad.

  • Production Capacity
    30-800t/h

  • Max Feeding Size
    300-800mm

  • More than 200
    kinds of materials

Processing Materials: limestone, granite, coal, slag, clay.

Send e-mail inquire@sinoftm.com

Introduction:

This series of impact crusher is a new type of impact crusher developed by our company according to the specific conditions of the domestic gravel industry, and combined advanced technology at home and abroad. It adopts the latest manufacturing technology and unique structural design. The finished products are cubic, with good shape, no tension and cracks. It can crush all kinds of coarse, medium and fine materials (granite, limestone, concrete, etc.), widely used in various ore crushing, railway, highway, energy, cement, chemicals, construction and other industries. The size of discharge can be adjusted and the crushing specifications are diversified. Its compressive strength can be up to 350 MPa, and the crushing ratio is relatively larger.

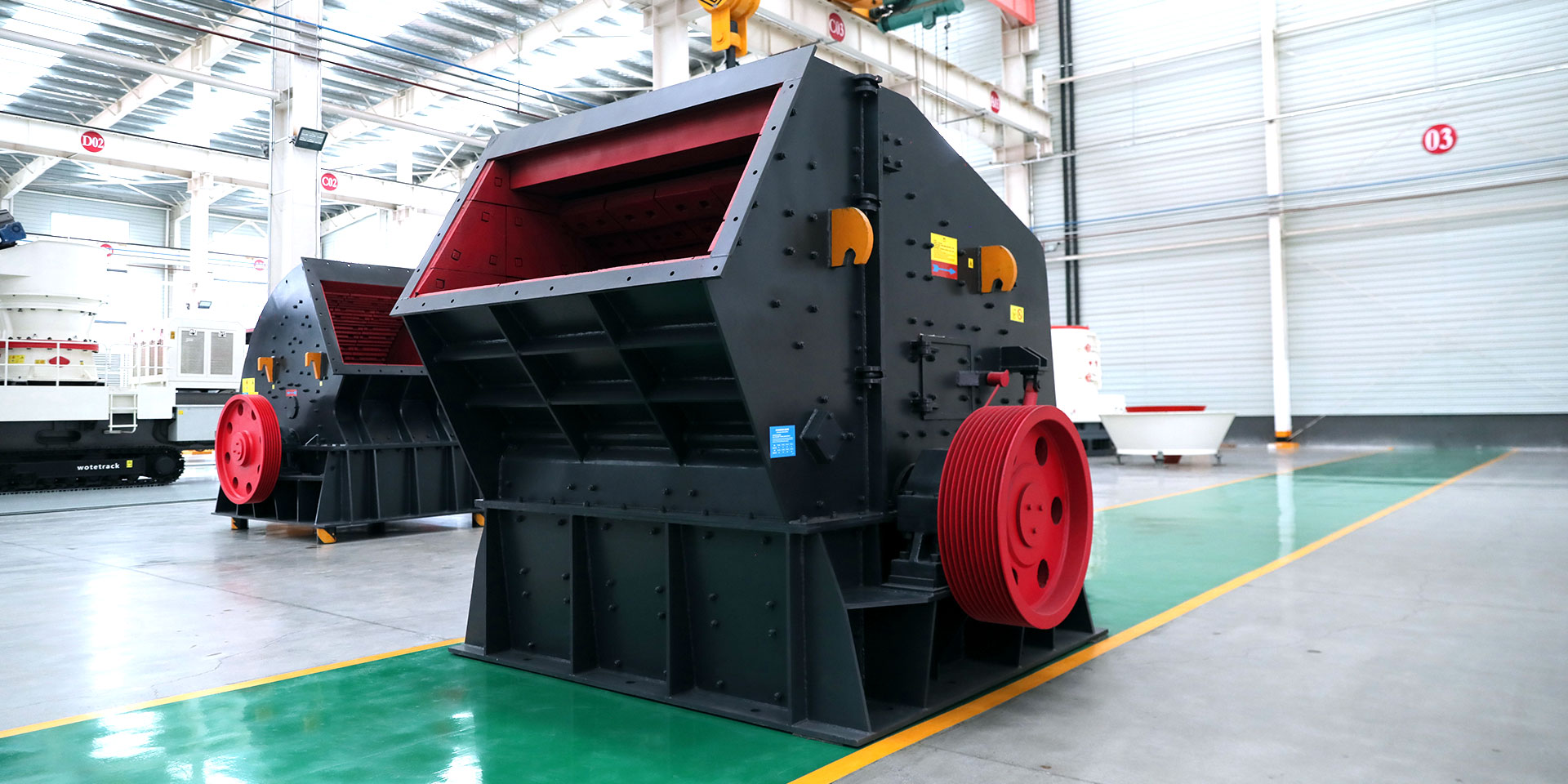

Impact Crusher

Performance Advantages:

1. Large processing capacity, good product shape

With large crushing ratio, it can adjust the impact board and board hammer to flexibly control discharge size, making product shape good.

2.Unique structure, reliable performance

Compact structure, strong rigidity, and the rotor has a larger moment of inertia. High crushing performance, reliable and stable quality, wide adaptability of materials, high safety and reliability.

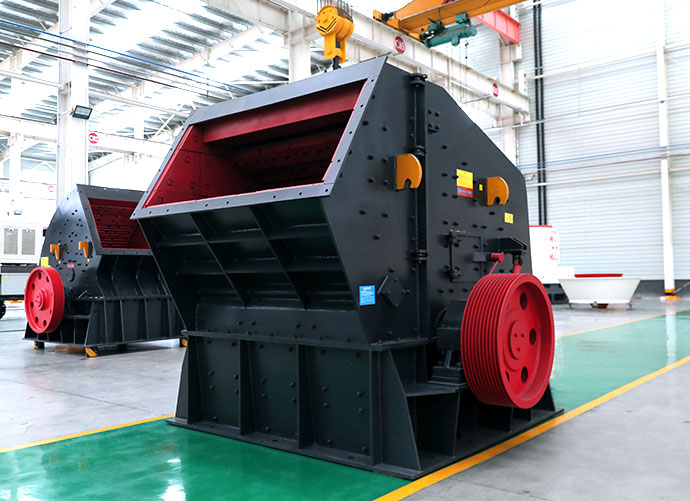

Impact Crusher

3. High efficiency and energy-saving, low cost

On the first line of the site crushing of materials, effectively reducing production and operation costs.

4.High comprehensive efficiency

High chromium hammer, resistance to impact and wear, large impact force

Technical Parameter:

Model Specification
(mm)
Feed
opening
(mm)
The Maximum
Feeding Size
(mm)
Capacity
(t/h)
Power
(kw)
Total
weight
(t)
Overall
dimension
(L×W×H)
(mm)
PF-1007 Φ1000×700 400×730 300 30-70 4P   37-45 12 2330×1660×2300
PF-1010 Φ1000×1050 400×1080 350 50-90 4P   45-66 15 2370×1700×2390
PF-1210 Φ1250×1050 400×1080 350 70-130 6P   110 17.7 2680×2160×2800
PF-1214 Φ1250×1400 400×1430 350 100-180 6P   132 22.4 2650×2460×2800
PF-1315 Φ1320×1500 860×1520 500 130-250 6P   200 27 3180×2720×2620
PF-1320 Φ1300×2000 993×2000 500 165-320 6P   250 34 3220×3100×2620
PF-1520 Φ1500×2000 830×2040 700 300-550 4P   315-400 50.6 3959×3564×3330
PF-1820 Φ1800×2000 1260×2040 800 600-800 6P   630-710 83.21 4400×3866×4009
