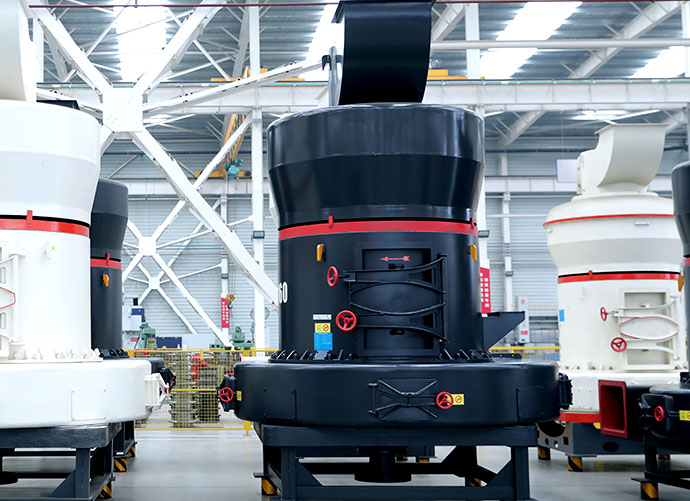

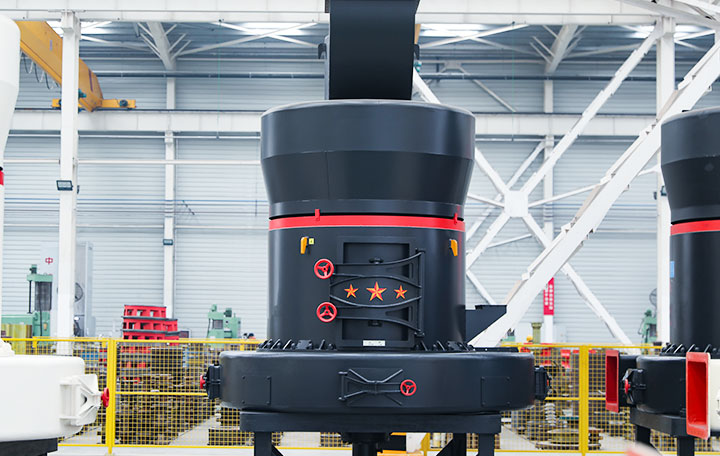

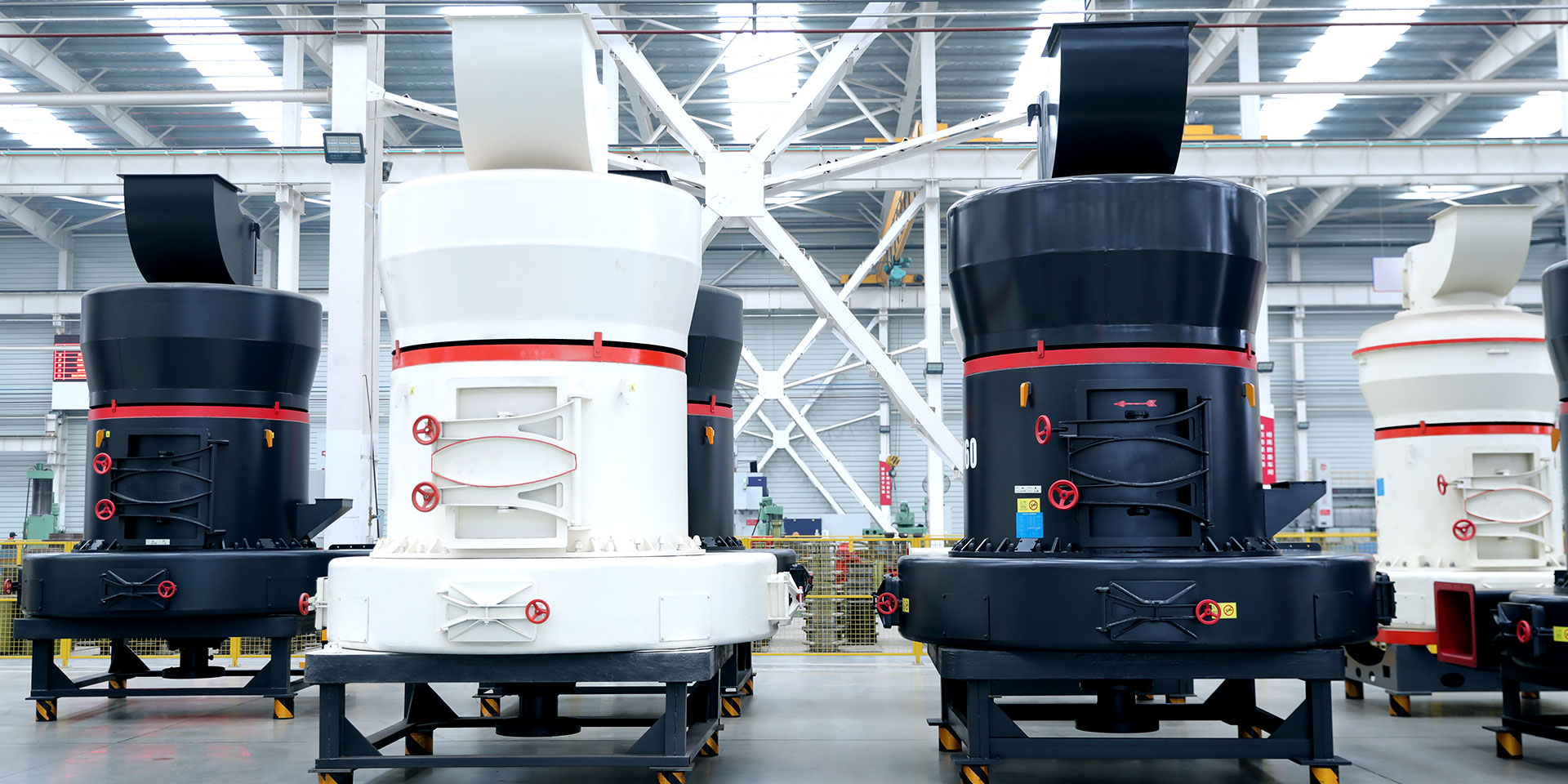

Raymond Mill

Raymond Mill

Raymond Mill is widely used for high-fine powder processing of more than 280 kinds of non-flammable and non-explosive materials in mineral, chemical, construction and other industries like dolomite, limestone chemical raw materials whose Mohs hardness is not bigger than 9.3 and humidity less than 6%.

  • Production Capacity
    0.2-12t/h

  • Max Feeding Size
    15-25mm

  • More than 200
    kinds of materials

Processing Materials: gypsum, talc, calcite, limestone, marble, barite, dolomite, granite, kaolin, bauxite, iron oxide red, iron ore, etc.

Send e-mail inquire@sinoftm.com

Introduction:

Raymond Mill is widely used for high-fine powder processing of more than 280 kinds of non-flammable and non-explosive materials in mineral, chemical, construction and other industries like dolomite, limestone, potash feldspar, barite, calcite, talc, marble, fluorite, activated clay, activated carbon, bentonite, kaolin, cement, gypsum, bluestone, chemical raw materials whose Mohs hardness is not bigger than 9.3 and humidity less than 6%. And it is also widely used in the fields of calcium carbonate crushing and processing, gypsum powder processing, power plant desulfurization, non-metallic mineral milling and pulverized coal manufacturing.

On the base of absorbing a wide range of international advanced technology, Raymond mill has the reform and innovation of structural design, making it more time-efficient, larger output and longer life cycle. At the same time, rigorous internal circulation wind selection operation abandons the dust pollution in the past, ensures the health and environmental protection of the operating environment, and provides convenience for green production compliance.

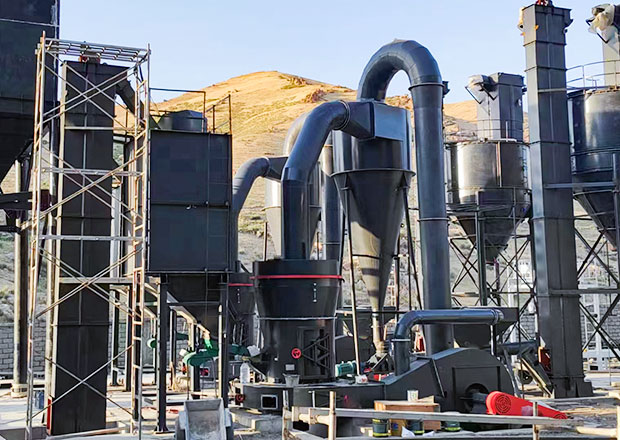

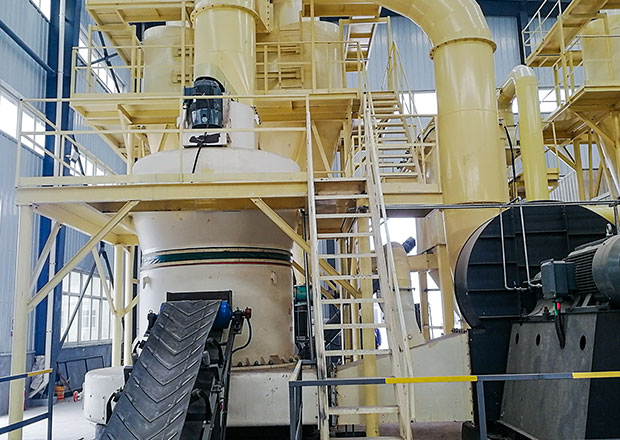

Raymond Mill use

Performance Advantages:

1. High efficiency, low power consumption, small footprint and one-time low investment.

2. High degree of fineness and uniformity of various finished product powder make the sieve passing rate up to 95%, which can’t be reached by other powder grinding equipments.

3. The adoption of advanced foreign environmental protection technology effectively reduces dust pollution.

4. Zero-noise mode of operation is standard of the Raymond mill produced by our company, adding a quiet to the world.

Technical Parameter:

Model 4525 4119
Feeding Size(mm) ≤30 ≤25
Output Size(mm) 0.044-0.173 0.044-0.173
Shift Output of Different Material Fineness(t) 16-176 8-78
Rotation Speed of Central Shaft(r/min) 82 105
Ring Diameter(mm) 1770 1400
Roller Diameter(mm) 450 410
Roller Height(mm) 250 190
Main Motor Y315M-4-132 Y280S-4-75
Fan Motor Y315M-4-132 Y280S-4-75
Analyzer Motor YCT250-4A-18.5 YCT200-4B-7.5
