Rotary Dryer

Rotary Dryer

Rotary dryer is mainly used for the materials with certain humidity or particle size in ore beneficiation, building materials, metallurgy, chemical and other industries.

  • Production Capacity
    4.5-210t/h

  • Product specification:
    φ1.5×5.7~φ4.6×10.5+3.5m

  • More than 200
    kinds of materials

Processing Materials: cement raw material, river gravel, granite, basalt, iron ore, limestone, calcite, quartz, and diabase

Send e-mail inquire@sinoftm.com

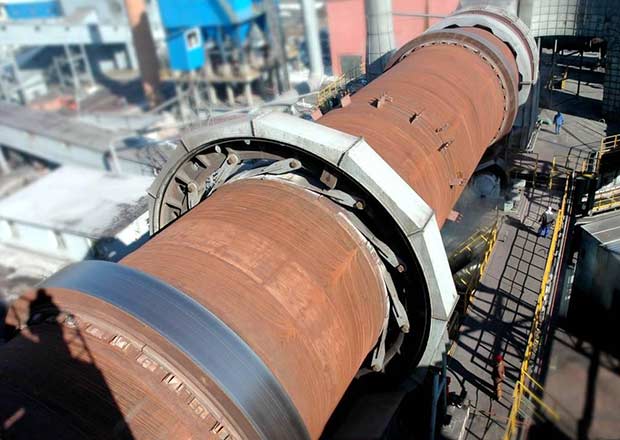

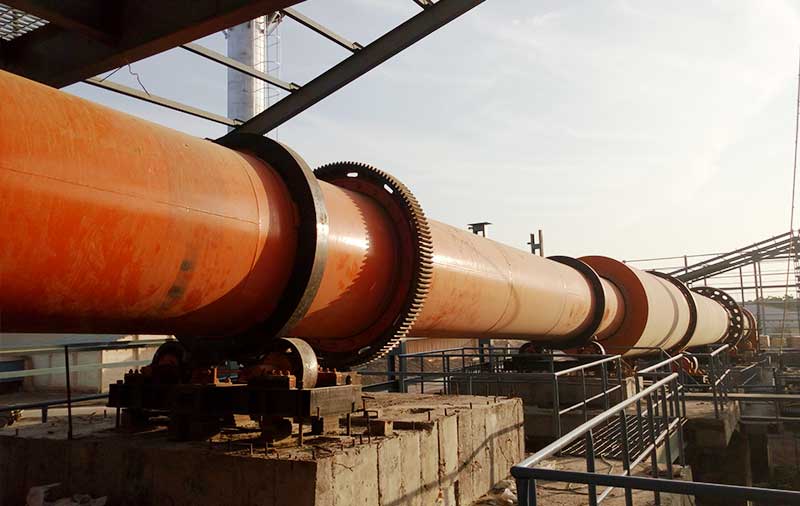

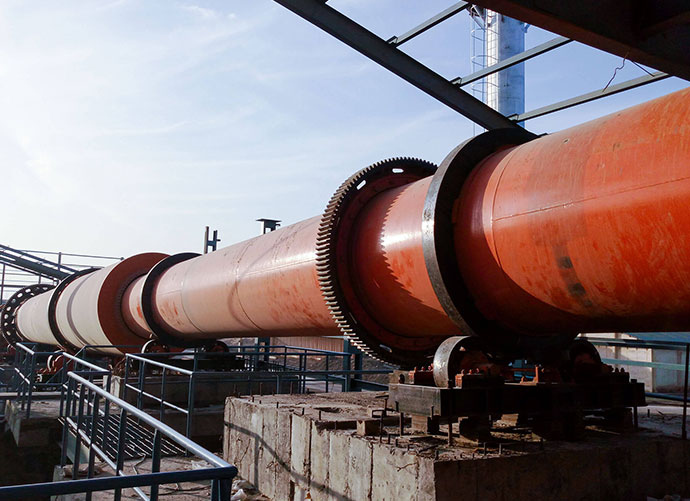

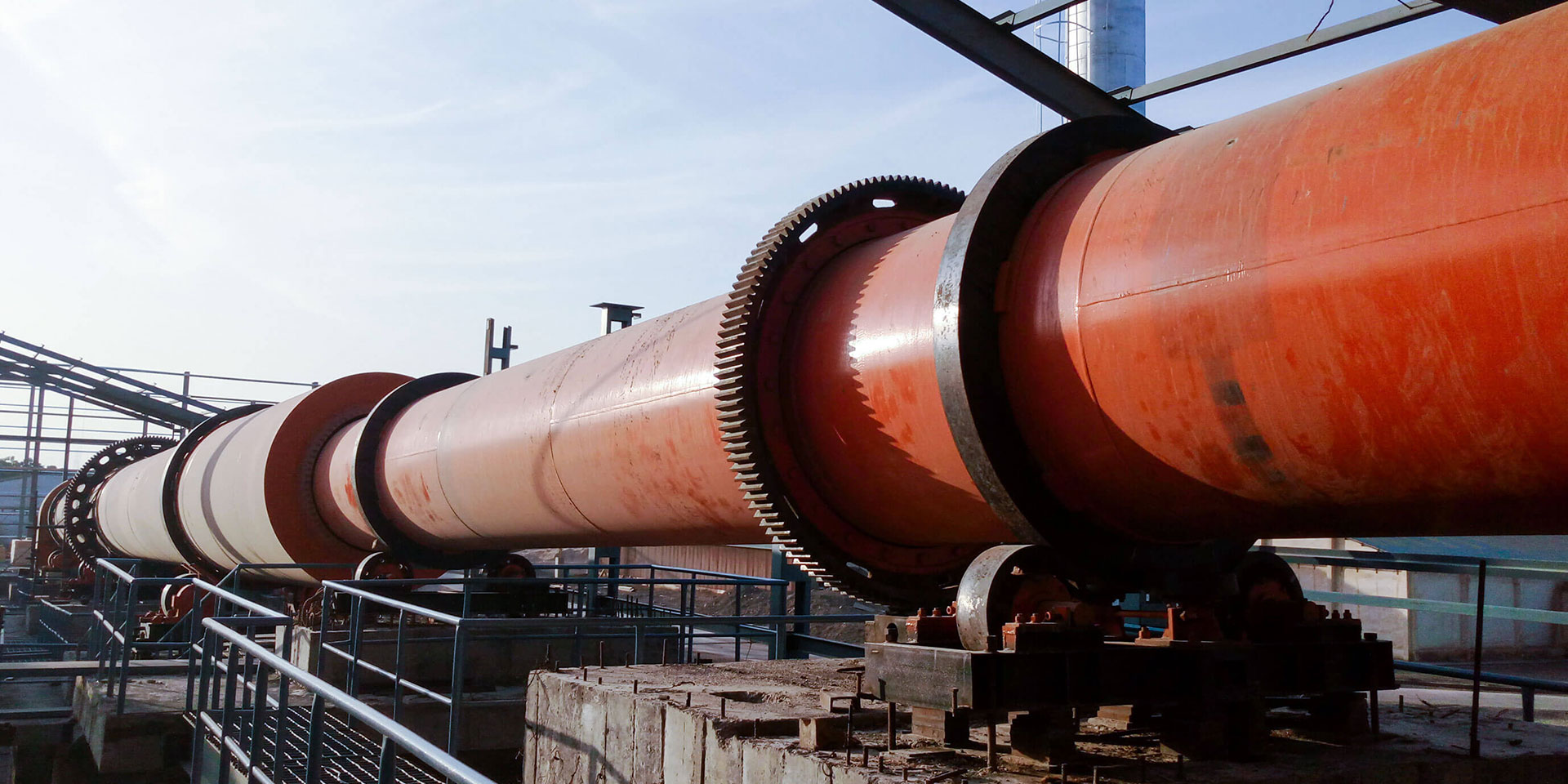

Introduction:

Rotary dryer is mainly used for the materials with certain humidity or particle size in ore beneficiation, building materials, metallurgy, chemical and other industries.

The dryer produced by our company mainly consists of the rotary body, lifting board, transmission device, support device, seal ring and other components. It adopts new type of lifting board device with many kinds of functions such as guiding, current sharing, and lifting, etc, which can make the material evenly distributed in the radial section of the dryer, the material screen becomes thin, uniform and comprehensive, fully accessing to hot air, to achieve the purpose of full use of thermal energy.

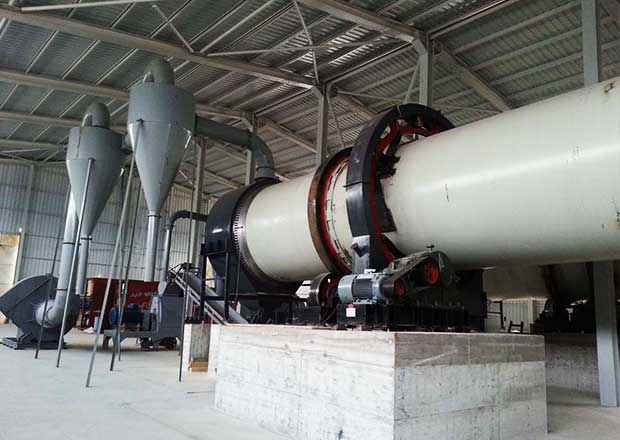

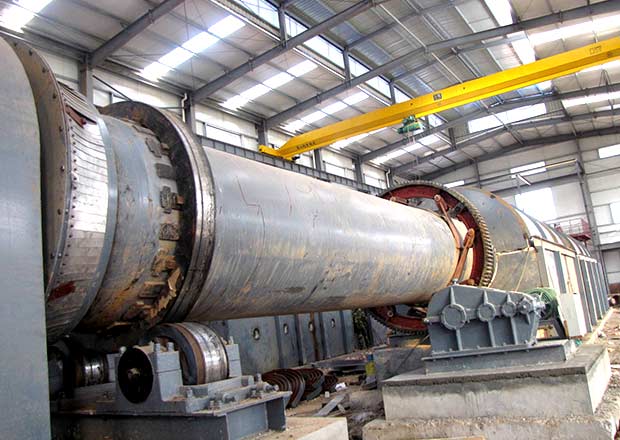

Rotary dryer

Performance Advantages:

1. Low investment costs, simple system , compact layout and small footprint.

2. The direct contact of hot air with materials in the mill greatly enhances the drying capacity, and then saves energy.

3. The design of temperature regulation with hot air can meet the needs of different customers.

4. Low noise, little vibration, and the whole equipment is sealed without dust spilling over.

Technical Parameter:

Spec./m
(Dia.×Length)
Shell Cubage
(m³)
Capacity
(t/h)
Installation
Obliquity
(%)
Highest Inlet
Air Temperature
(℃)
Main Motor
(kw)
Weight
(t)
Φ1.2×8.0
9.0
1.9~2.4
3~5
700~800
7.5
9
Φ1.2×10
11.3
2.4~3.0
3~5
700~800
7.5
11
Φ1.5×12
21.2
4.5~5.7
3~5
700~800
15
18.5
Φ1.5×14
24.7
5.3~6.6
3~5
700~800
15
19.7
Φ1.5×15
26.5
5.7~7.1
3~5
700~800
15
20.5
Φ1.8×12
30.5
6.5~8.1
3~5
700~800
18.5
21.5
Φ1.8×14
35.6
7.6~9.5
3~5
700~800
18.5
23
Φ2.2×12
45.6
9.7~12.2
3~5
700~800
22
33.5
Φ2.2×14
53.2
11.4~14.2
3~5
700~800
22
36
Φ2.2×16
60.8
13.0~16.2
3~5
700~800
22
38
Φ2.4×14
63.3
13.5~16.9
3~5

700~800
37
45
Φ2.4×18
81.4
17.4~21.7
3~5
700~800
37
49
Φ2.4×20
90.4
19.3~24.1
3~5
700~800
45
54
Φ2.4×22
99.5
21.2~26.5
3~5
700~800
45
58
Φ2.6×24
127.4
27.2~34.0
3~5
700~800
55
73
Φ3.0×20
141.3
30.1~37.7
3~5
700~800
75
85
Φ3.0×25
176.6
37.7~47.1
3~5
700~800
75
95
Φ3.2×25
201
42.9~53.6
3~5
700~800
90
110
Φ3.6×28
285
60.8~76.0
3~5
700~800
160
135

Technical parameters of indirect heat dryer:

  Shell
diameter
×shell
Length
Items
Inside
diameter
of outer
shell
(mm)
Inside
diameter
of inner
shell
(mm)
Shell
 Length
(m)
Shell
 cubage
(m³)
Shell
obliquity
Lifting
blade
 form
Highest
inlet air
 temperature
(℃)
Dimensions
(m)
Φ1.5×15m 1500 500 15 20.27 3-5% Lifting form 850 16.2×2.7×2.7
Φ1.5×17m 17 22.97 18.2×2.7×2.7
Φ1.5×19m 19 25.68 20.0×2.9×2.9
Φ1.8×21m 1800 650 21 35.91 3-5% Lifting form 850 22.5×2.7×2.7
Φ1.8×23m 23 39.33 24.5×2.9×2.9
Φ1.8×25m 25 42.75 26.5×2.9×2.9
Φ2.2×21m 2200 800 21 58.10 3-5% Lifting form 850 ----
Φ2.2×23m 23 63.61
Φ2.2×25m 25 69.15
