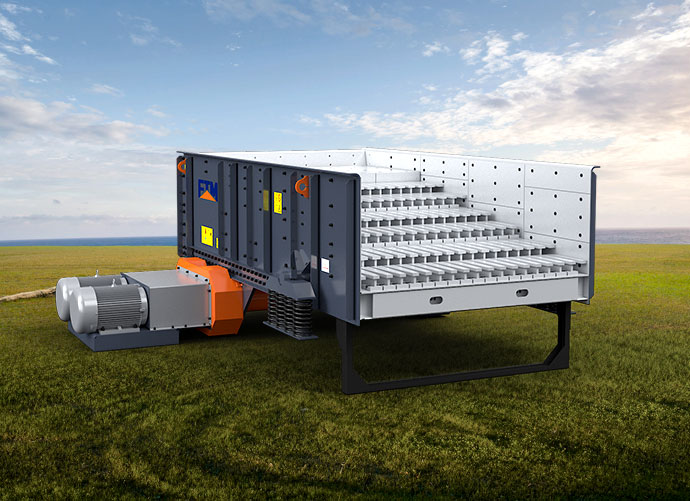

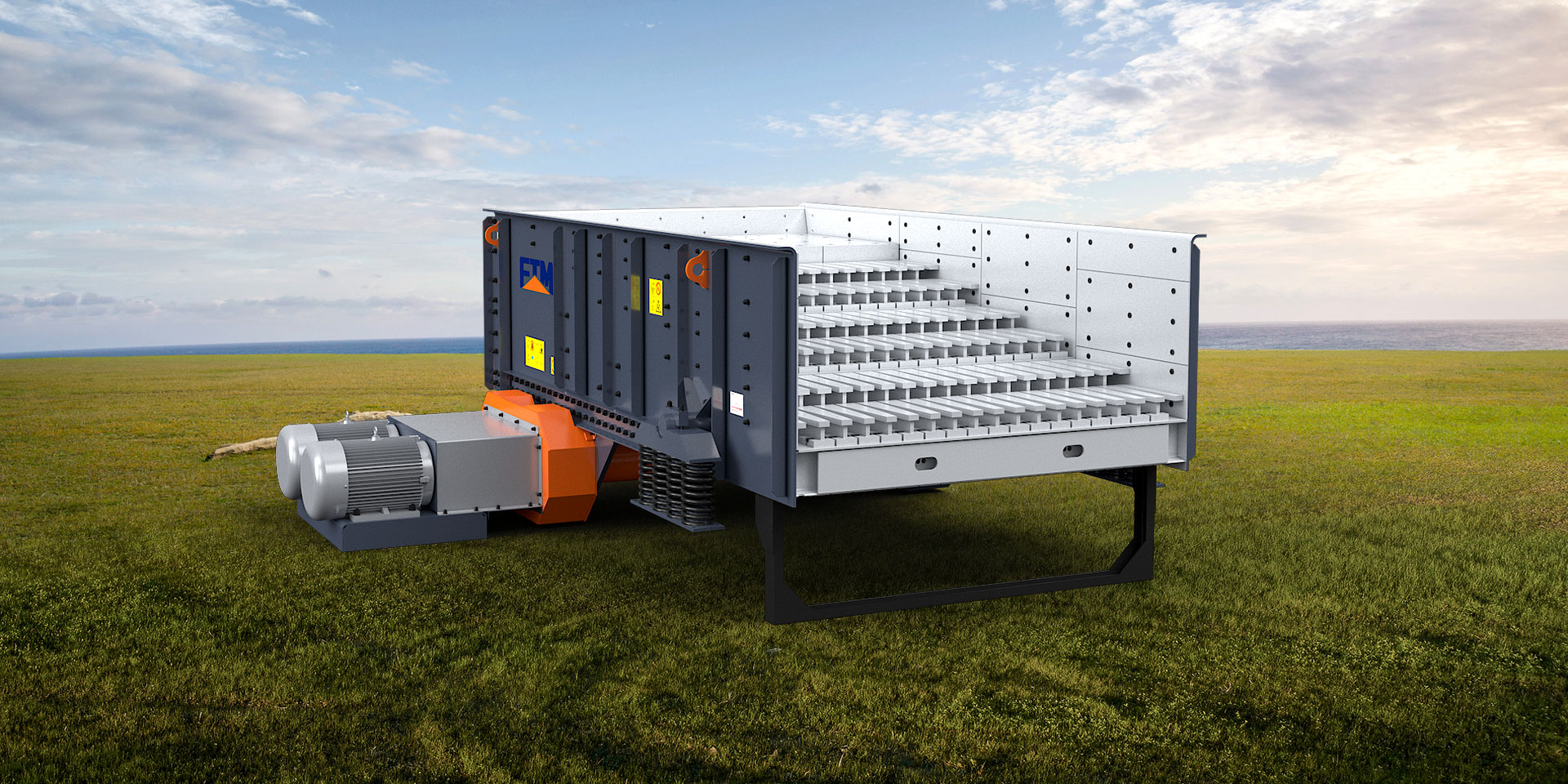

SG Series Heavy Duty Grizzly Vibrating Screen

SG Series Heavy Duty Grizzly Vibrating Screen SG Series Heavy Duty Grizzly Vibrating Screen

High-quality products

are our core competitiveness

Internal Structure

Production Introduction

SG series heavy duty grizzly Vibrating screen is suitable for high-strength linear vibrating screen under large impact load conditions, which is used to remove fine materials that do not need to pass through the primary crusher before primary crushing, and reduce the burden of the primary crusher. It is an ideal equipment for processing raw materials with high content of fine grained materials such as blasting raw rock, sand gravel and river pebbles.

It is widely used in quarries, mines, building materials, power, coal mines and chemical industries, and is suitable for inspection screening before primary crushing and secondary crushing.

CONTACT US

THE MAIN BENEFITS AND ADVANTAGES

The straight track generated by the double axis vibrator makes the equipment have higher screening efficiency;

The maximum vibration intensity is 4.5G, and the ladder bar is not easy to jam;

The vibration parameters can be adjusted conveniently to better adapt to different site conditions;

500mm-1500mm feeding range, suitable for large impact and high load working conditions;

By adjusting the grate clearance and selecting the lower screen mesh, the equipment can have a wide separation granularity grade

SG Series Heavy Duty Grizzly Vibrating ScreenTechnical Parameter

TO VIEW MORE
Model W*L size Power Four
SG1231 1200×3000 2*7.5 1
SG1242 1200×3900 2*11 2
SG1541 1500×3900 2*11 1
SG1542 1500×3900 2*11 2
SG1841 1800×3900 2*11 1
SG1842 1800×3900 2*18.5 2
SG2151 2100×4800 2*22 1
SG2451 2400×4800 2*22 1



Rotating speed 700-980RPM
 Amplitude  5-14mm
 Vibration intensity  MAX4.5G
Installation angle 5°-10°
Separation particle size 60-250mm
Maximum feeding size 500-1500mm

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model W*L size Power Four
SG1231 1200×3000 2*7.5 1
SG1242 1200×3900 2*11 2
SG1541 1500×3900 2*11 1
SG1542 1500×3900 2*11 2
SG1841 1800×3900 2*11 1
SG1842 1800×3900 2*18.5 2
SG2151 2100×4800 2*22 1
SG2451 2400×4800 2*22 1



Rotating speed 700-980RPM
 Amplitude  5-14mm
 Vibration intensity  MAX4.5G
Installation angle 5°-10°
Separation particle size 60-250mm
Maximum feeding size 500-1500mm

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
