Processing Materials: pebble, limestone, granite, basalt, dolerite, ore tailing, etc.
85-650t/hProduction Capacity
500–800mmMax Feeding Size

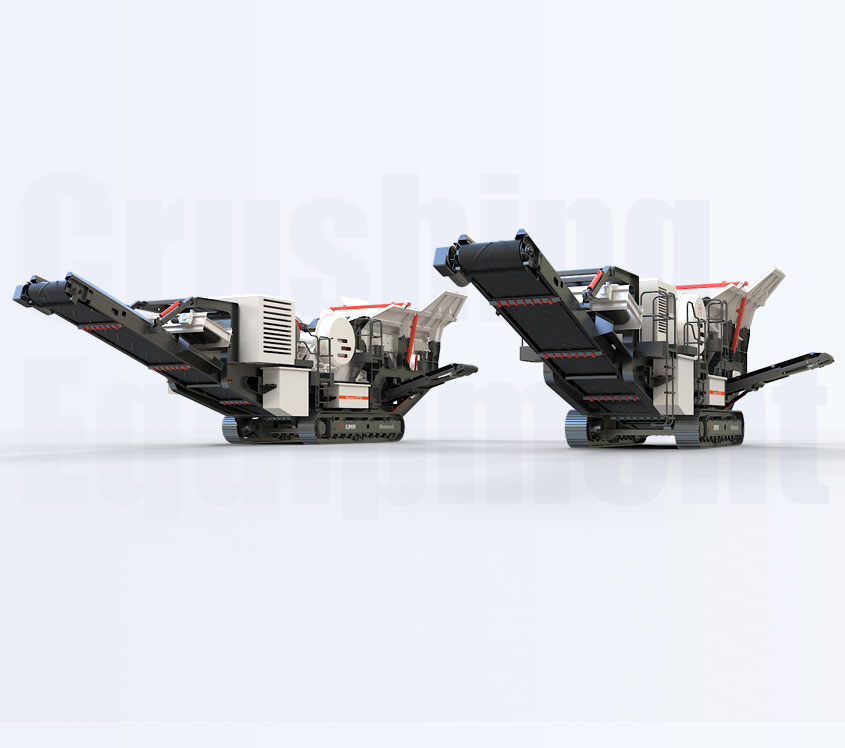

The crawler mobile crusher is a kind of efficient crushing equipment with self-driving device, advanced technique, and complete function. In any terrain conditions, this machine can move to any position of the working site. Controlled by the wireless remote, the crushing machines can be put onto the trailer easily and sent to the working site. The installation time is unnecessary so that as soon as it is at the working site it can be in the operation immediately.
For details1. Big crushing ratio, high production efficiency
2. Nice particle shape of the final product
3. High adaptability
4. Flexible Configuration
For details
As a big-scale mobile crushing machinery manufacturer, well-known in the industry, Fote Heavy Machinery offers you much choice in model numbers. We can customize the production line for free for you according to your operation site and material. Our mobile crushing machine can be equipped with different kinds of machines. There must be a proper one for you! Our products have been sold to many countries and places abroad, such as Southeast Asia, South Asia, Africa, etc.
| Model | WT96 | WT106 | WT120 | |
| Dimensions of Transmission Devices | Length | 14200mm | 14900mm | 15200mm |
| Width | 2900mm | 3000mm | 3200mm | |
| Height | 3470mm | 3600mm | 3700mm | |
| Weight | 38t | 50t | 65t | |
| Feeder | Hopper Volume | 5m³ | 5m³ | 6m³ |
| Loading Height | 3900mm | 4100mm | 4300mm | |
| FeederModel | GZDT3895 | GZDT1145 | GZDT1245 | |
| Unearthed Belt Conveyors | Dimensions (Width×Length) |
800×9000mm | 1000×10000mm | 1200×12000mm |
| Dumping Height | 3100mm | 3200mm | 3400mm | |
| Crusher | Model | CJ96 | CJ106 | CJ120 |
| Inlet Dimensions | 930×580mm | 1060×700mm | 1200×870mm | |
| Max.Feeding Size | 480mm | 560mm | 700mm | |
| Main Belt Conveyor | Dimensions (Width×Length) |
800×9000mm | 1000×10000mm | 1200×12000mm |
| Dumping Height | 3100mm | 3200mm | 3400mm | |
| Iron Remover | Model | RCYQ-8 | RCYQ-10 | RCYQ-10 |
| Diesel Engine | Power | 96kw | 106kw | 132kw |
| Manufacturer | Carter Perkins | Carter Perkins | Carter Perkins | |
| The Main Machine | Power | 112.9kw | 141.4kw | 196.2kw |
| Ways of Controlling | Wired/Wireless (optional) | Wired/Wireless (optional) | Wired/Wireless (optional) | |
| Model | WT110 | WT110S | WT1213 | WT1213S | WT1315 | |
| Dimensions of Transmission Devices | Length | 14000mm | 16000mm | 15500mm | 19000mm | 17000mm |
| Width | 3000mm | 3200mm | 3200mm | 3600mm | 3200mm | |
| Height | 3600mm | 3600mm | 3800mm | 3800mm | 3800mm | |
| Weight | 40t | 45t | 53t | 60t | 65t | |
| Feeder | Hopper Volume | 3m³ | 3m³ | 5m³ | 5m³ | 5m³ |
| Loading Height | 3900mm | 4000mm | 3900mm | 4100mm | 4000mm | |
| Primary Screen | Power | 5.2kw | 5.2kw | 6.12kw | 6.12kw | 6.12kw |
| Sieve Dimensions | 1040×924mm | 1040×924mm | 1140×924mm | 1140×924mm | 1240×930mm | |
| Crusher | Model | CI1110M | CI1110M | CI1213M | CI1213M | CI1315M |
| Inlet Dimensions | 1020×860mm | 1020×860mm | 1320×900mm | 1320×900mm | 1540×900mm | |
| Max.Feeding Size | 400mm | 400mm | 500mm | 500mm | 600mm | |
| The Feeder at the Bottom | Hopper Volume | 0.8m³ | 0.8m³ | 1m³ | 1m³ | 1.5m³ |
| Power | 5.2kw | 5.2kw | 5.2kw | 5.2kw | 6.12kw | |
| Unearthed Belt Conveyors | Dimensions (Width×Length) |
650×3500mm | 650×3500mm | 650×3500mm | 650×3500mm | 650×3500mm |
| Dumping Height | 2200mm | 2200mm | 2200mm | 2200mm | 2400mm | |
| Main Belt Conveyor | Dimensions (Width×Length) |
1000×8500mm | 1000×8500mm | 1000×9900mm | 1000×9900mm | 1200×11000mm |
| Dumping Height | 3300mm | 3300mm | 3500mm | 3500mm | 3800mm | |
| Secondary Screen | Power | ○ | 6.12kw | ○ | 6.12kw | ○ |
| Sieve Dimensions | ○ | 1500×3600 | ○ | 1500×4200 | ○ | |
| Belt Conveyors at the Bottom | Dimensions (Width×Length) |
○ | 1000×5800mm | ○ | 1000×6200mm | ○ |
| Dumping Height | ○ | 2900mm | ○ | 3000mm | ○ | |
| Transferring Belt Conveyor | Dimensions (Width×Length) |
○ | 650×2500mm | ○ | 650×2800mm | ○ |
| Dumping Height | ○ | 1400mm | ○ | 1400mm | ○ | |
| Belt Conveyors for Discharging Material | Dimensions (Width×Length) |
○ | 500×8000mm | ○ | 500×9200mm | ○ |
| Dumping Height | ○ | 4200mm | ○ | 4500mm | ○ | |
| Iron Remover | Model | RCYQ-10 | RCYQ-10 | RCYQ-10 | RCYQ-10 | RCYQ-10 |
| Diesel Engine | Power | 96kw | 106kw | 106kw | 132kw | 132kw |
| Manufacturer | Carter Perkins | Carter Perkins | Carter Perkins | Carter Perkins | Carter Perkins | |
| The Main Machine | Power | 253kw | 274kw | 304kw | 324.4kw | 366kw |
| Ways of Controlling | Wired/Wireless (optional) | Wired/Wireless (optional) | Wired/Wireless (optional) | Wired/Wireless (optional) | Wired/Wireless (optional) | |
| Model | WT160SC | WT250SC | WT300HPM | WT400HPM | |
| Dimensions of Transmission Devices | Length | 16800mm | 19000mm | 19000mm | 19500mm |
| Width | 3500mm | 3600mm | 3900mm | 3900mm | |
| Height | 3700mm | 3800mm | 3800mm | 3800mm | |
| Weight | 50t | 60t | 55t | 65t | |
| Belt Conveyor | Hopper Volume | 3m³ | 3m³ | 3m³ | 3m³ |
| Loading Height | 2600m | 2600m | 2600m | 2800m | |
| Loading Width | 1900mm | 1900mm | 1900mm | 1900mm | |
| Dimensions (Width×Length) |
1000×6300mm | 1000×6300mm | 1000×6300mm | 1200×6500mm | |
| Crusher | Model | SC160 | SC250 | HP300 | HP400 |
| Inlet Dimensions | 75-360mm | 75-450mm | 60-200mm | 68-280mm | |
| Max.Feeding Size | 360mm | 450mm | 200mm | 280mm | |
| Min. Discharging Size | 8-25mm | 8-35mm | 8-45mm | 8-51mm | |
| Main Belt Conveyor | Dimensions (Width×Length) |
1000×9000mm | 1000×10000mm | 1000×10000mm | 1000×11000mm |
| Dumping Height | 3100mm | 3490mm | 3490mm | 3690mm | |
| Secondary Screen | Dumping Height | 4200mm | 4200mm | 4400mm | 4400mm |
| Model | HX1536 | HX1536 | HX1536 | HX1536 | |
| Sieve Dimensions | 1500×3600mm | 1500×3600mm | 1500×3600mm | 1500×3600mm | |
| Belt Conveyors at the Bottom | Dimensions (Width×Length) |
1000×5600mm | 1000×5600mm | 1000×5600mm | 1000×6500mm |
| Dumping Height | 3020mm | 3020mm | 3020mm | 3300mm | |
| Belt Conveyors to the Sieve | Dimensions (Width×Length) |
650×2100mm | 650×2100mm | 650×2100mm | 650×2100mm |
| Dumping Height | 1370mm | 1370mm | 1370mm | 1370mm | |
| Belt Conveyors for Discharging Material | Dimensions (Width×Length) |
650×10000mm | 650×10000mm | 650×11000mm | 650×11000mm |
| Dumping Height | 4200mm | 4200mm | 4400mm | 4400mm | |
| Diesel Engine | Power | 96kw | 132kw | 106kw | 132kw |
| Manufacturer | Carter Perkins | Carter Perkins | Carter Perkins | Carter Perkins | |
| The Main Machine | Power | 207.12kw | 297.12kw | 267.12kw | 362.12kw |
| Ways of Controlling | Wired/Wireless (optional) | Wired/Wireless (optional) | Wired/Wireless (optional) | Wired/Wireless (optional) | |
| Model | ST673 | ST993 | ST1303 | |
| Dimensions of Transmission Devices |
Length | 11000mm | 12500mm | 12500mm |
| Width | 3800mm | 4000mm | 4000mm | |
| Height | 3800mm | 3900mm | 3900mm | |
| Weight | 28t | 33t | 38t | |
| Feeding Belt Conveyor | Dimensions (Width×Length) |
1000×10000mm | 1000×10000mm | 1000×13000mm |
| Loading Height | 2560mm | 2680mm | 2700mm | |
| Vibrating Screen | Model | 3HX1545 | 3HX1855 | 3HX2160 |
| Sieving Layers | 3 | 3 | 3 | |
| Belt Conveyor | Dimensions (Width×Length) |
1000×7400mm | 1000×7500mm | 1000×7500mm |
| Discharging Height | 3380mm | 3460mm | 3460mm | |
| Belt Conveyor for Coarse Material |
Dimensions (Width×Length) |
500×5600mm | 650×5800mm | 650×5800mm |
| Discharging Height | 3430mm | 3570mm | 3570mm | |
| Belt Conveyor for Medium-Sized Material |
Dimensions (Width×Length) |
500×5300mm | 650×5400mm | 650×5400mm |
| Discharging Height | 3150mm | 3250mm | 3250mm | |
| Belt Conveyor for Fine Material |
Dimensions (Width×Length) |
500×5600mm | 650×5800mm | 650×5800mm |
| Discharging Height | 3030mm | 3080mm | 3080mm | |
| Transferring Belt Conveyors | Dimensions (Width×Length) |
500×2000mm | 650×2000mm | 650×2000mm |
| Discharging Height | 2130mm | 2130mm | 2130mm | |
| Diesel Engine | Power | 75kw | 75kw | 96kw |
| Manufacturer | Carter Perkins | Carter Perkins | Carter Perkins | |
| The Main Machine | Power | 54kw | 57.5kw | 65.5kw |
| Ways of Controlling | Wired/Wireless (optional) | Wired/Wireless (optional) | Wired/Wireless (optional) | |
