The output of cement mill produced by Fote Machinery is 21~155 t/h, and the specific surface area of cement is 3300~3800 cm ² /g.

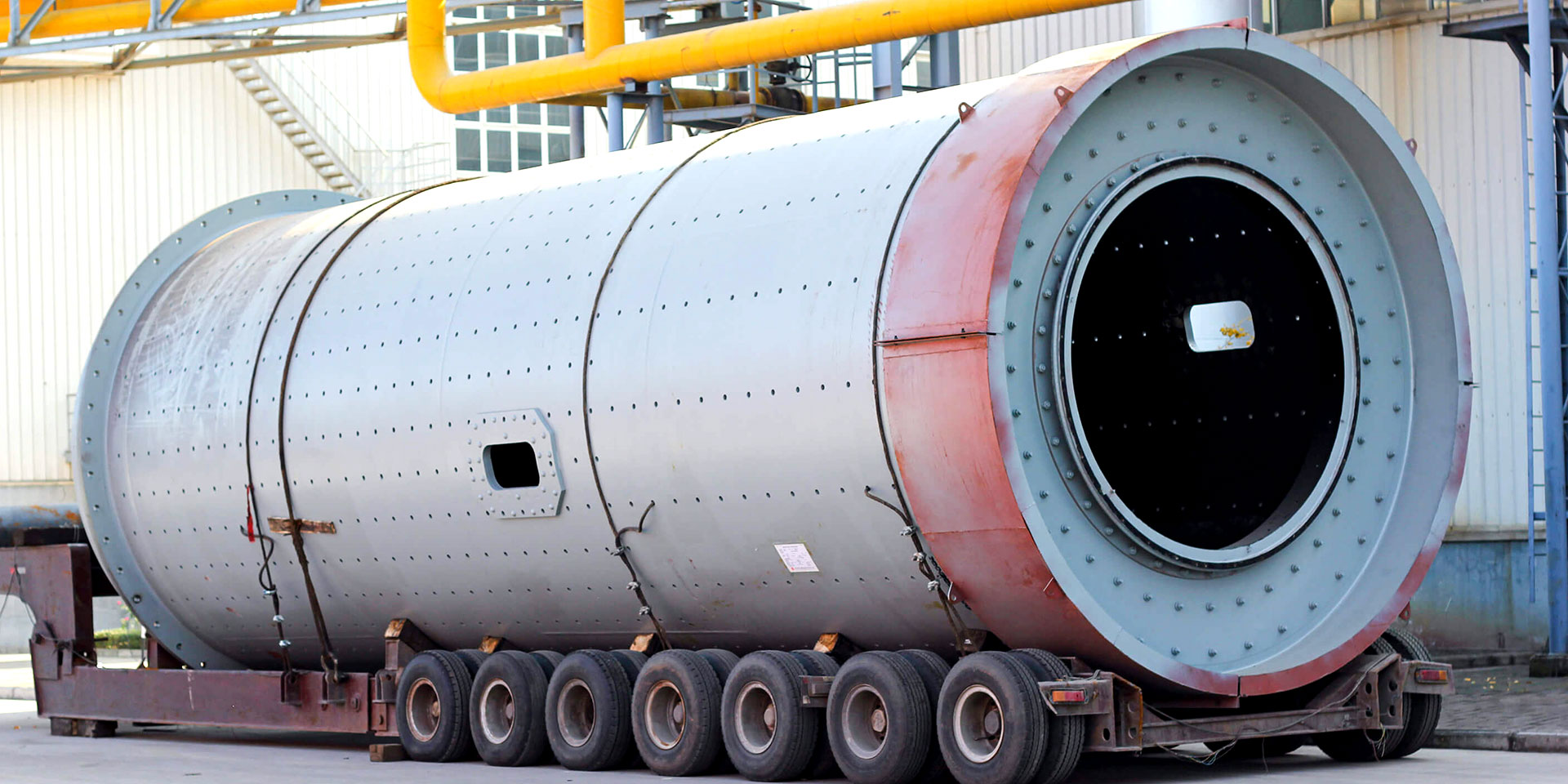

CONTACT USCement mill is a new generation of grinding equipment which is independently developed by our company by introducing advanced foreign technology. The cement mill produced by our company has the advantages of strong adaptability to materials, continuous production, and easy adjustment of the fineness of products, etc. Both the dry and wet production can be carried out. Besides, grinding and drying can be carried out at the same time. The cement mill of our company has powerful performance.
1. High grinding efficiency, large output, and low power consumption.
2. Good dust removal performance and less pollution.
3. Both dry and wet production can be realized, and grinding and drying can be carried out at the same time.
Fote Machinery can design a whole set of cement production line according to the requirements of customers, and we have senior engineers to provide the production process and design of cement production line for you. The cement mill price of our company is low with high quality. The cement manufacturing equipment of our company mainly includes cement rotary kiln, cement mill, raw mill, etc. Welcome to make an enquiry!
| (Dia.×Length) (m) |
Speed (r/min) |
Feeding Size (mm) |
Griding Media Loading (t) |
Main Motor (KW) |
Main Reducer |
| Φ2.2×7.0 | 21.5 | <25 | 32 | 380 | ZD70 |
| Φ2.2×9.0 | 21.5 | <25 | 44 | 480 | ZD70 |
| Φ2.2×9.5 | 21.5 | <25 | 45 | 480 | ZD70 |
| Φ2.2×11 | 21.5 | <25 | 58 | 630 | ZD80 |
| Φ2.2×13 | 21.5 | <25 | 58 | 630 | ZD80 |
| Φ2.4x10 | 20.3 | <25 | 55 | 630 | ZD80 |
| Φ2.4×11 | 20.3 | <25 | 62 | 710 | MBY710 |
| Φ2.4×12 | 20.3 | <25 | 68 | 800 | MBY710 |
| Φ2.4×13 | 20.3 | <25 | 68 | 800 | MBY710 |
| Φ2.6×11 | 19.7 | <25 | 68 | 800 | MBY710 |
| Φ2.6×13 | 19.7 | <25 | 82 | 1000 | MBY800 |
| Φ3.0×9.0 | 18.2 | <25 | 78 | 1000 | MBY800 |
| Φ3.0×11 | 18.2 | <25 | 95 | 1250 | MBY800 |
| Φ3.0×12 | 18.2 | <25 | 100 | 1250 | MBY800 |
| Φ3.0×13 | 18.2 | <25 | 108 | 1400 | MBY900 |
| Φ3.2×11 | 17.8 | <25 | 110 | 1400 | MBY900 |
| Φ3.2×13 | 17.8 | <25 | 128 | 1600 | MBY1000 |
| Φ3.2×13 | 17.7 | <25 | 128 | 1600 | JS120-A |
| Φ3.2×14 | 17.8 | <25 | 138 | 1800 | MBY1000 |
| Φ3.5×11 | 17.1 | <25 | 160 | 1800 | MBY1000 |
| Φ3.5×13 | 17.3 | <25 | 175 | 2000 | MBY1000 |
| Φ3.8×12 | 17 | <25 | 175 | 2500 | JS130-C |
| Φ3.8×13 | 17 | <25 | 190 | 2500 | MBY1100 |
| Φ4.0×13 | 16.3 | <26 | 200 | 2800 | IS140-A |
| Φ4.2×11 | 15.8 | <25 | 195 | 2800 | JS140-A |
| Φ4.2x13 | 15.8 | <25 | 230 | 3150 | JS140-C |
| Φ4.2×14 | 15.6 | <25 | 252 | 3550 | JS150-B |
| Φ4.2×15 | 15.6 | <25 | 270 | 4000 | JS160-B |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| (Dia.×Length) (m) |
Speed (r/min) |
Feeding Size (mm) |
Griding Media Loading (t) |
| Φ2.2×7.0 | 21.5 | <25 | 32 |
| Φ2.2×9.0 | 21.5 | <25 | 44 |
| Φ2.2×9.5 | 21.5 | <25 | 45 |
| Φ2.2×11 | 21.5 | <25 | 58 |
| Φ2.2×13 | 21.5 | <25 | 58 |
| Φ2.4x10 | 20.3 | <25 | 55 |
| Φ2.4×11 | 20.3 | <25 | 62 |
| Φ2.4×12 | 20.3 | <25 | 68 |
| Φ2.4×13 | 20.3 | <25 | 68 |
| Φ2.6×11 | 19.7 | <25 | 68 |
| Φ2.6×13 | 19.7 | <25 | 82 |
| Φ3.0×9.0 | 18.2 | <25 | 78 |
| Φ3.0×11 | 18.2 | <25 | 95 |
| Φ3.0×12 | 18.2 | <25 | 100 |
| Φ3.0×13 | 18.2 | <25 | 108 |
| Φ3.2×11 | 17.8 | <25 | 110 |
| Φ3.2×13 | 17.8 | <25 | 128 |
| Φ3.2×13 | 17.7 | <25 | 128 |
| Φ3.2×14 | 17.8 | <25 | 138 |
| Φ3.5×11 | 17.1 | <25 | 160 |
| Φ3.5×13 | 17.3 | <25 | 175 |
| Φ3.8×12 | 17 | <25 | 175 |
| Φ3.8×13 | 17 | <25 | 190 |
| Φ4.0×13 | 16.3 | <26 | 200 |
| Φ4.2×11 | 15.8 | <25 | 195 |
| Φ4.2x13 | 15.8 | <25 | 230 |
| Φ4.2×14 | 15.6 | <25 | 252 |
| Φ4.2×15 | 15.6 | <25 | 270 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
