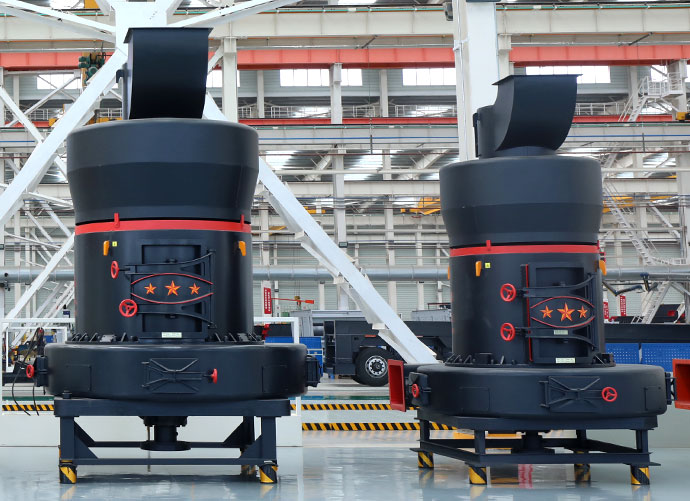

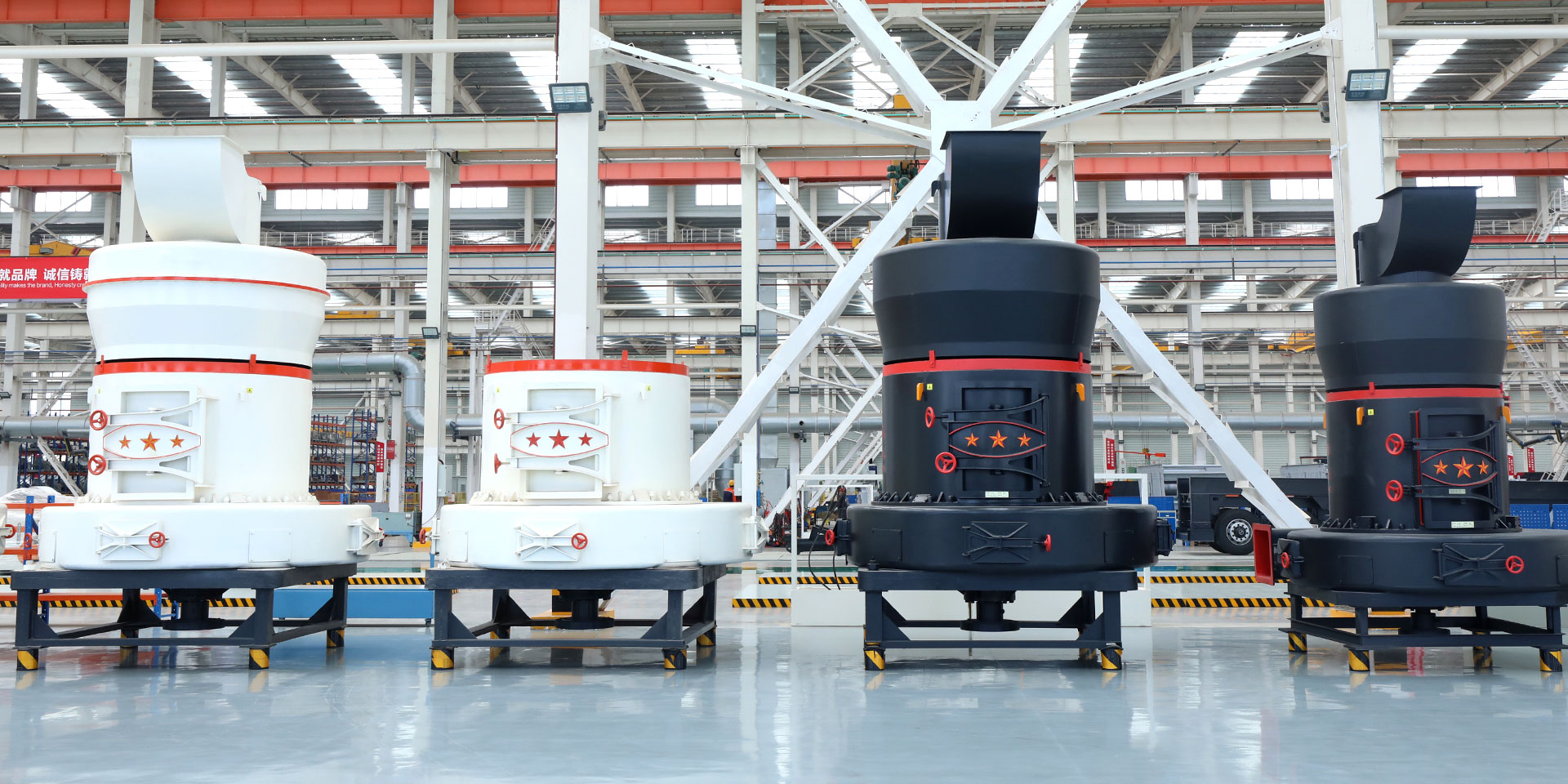

High-Pressure Micro-Powder Mill

High-Pressure Micro-Powder Mill

It is suitable for processing more than 200 kinds of materials with no more than 9 level Mohs hardness and less than 6% humidity.

200-500meshFinished fineness

≤25mmFeed Size

contact us


Production Introduction

Compared with the traditional Raymond mill, high-pressure micro-powder mill has a larger yield. The productivity of this machine can reach up to 50 tons per hour. The finished powder is fine and uniform. Its fineness is adjustable between 80-425 mesh. The production process of this powder mill is environmental friendly and pollution-free, which is in line with the environmental- protection production requirements of each state.

For details

The Main Benefits and Advantages:

Unique structure

Operation cost is low

1. Small investment, high income. In the case of the same output and fineness, the price of high-pressure micro-powder mill is only one eighth of airflow mill price.

2. Low energy consumption. In the case of the same output and fineness, the system energy consumption is only one third of other powder mills.

3. Wide applications. It has large feeding inlet. At the same time, it can produce the ultrafine powder with 6.5um particle size.

For details

Easy operation

High degree of automation

High-pressure micro-powder mill is mainly composed of mill machine, blower, ultra-fineness analyzer, finished product cyclone powder collector, bag-type dust collector and connecting duct and so on. According to user's demand, it can be also equipped with the bucket elevator, storage bin, electric-control cabinet, feeding machine, crusher and other auxiliary equipment.


High-Pressure Micro-Powder MillTechnical Parameter

TO VIEW MORE
  Parameter Model Micropowder93 Micropowder92 Micropowder87 Micropowder76 Micropowder66
Feeding size(mm) ≤25 ≤25 ≤20 ≤20 ≤15
Size of finished product(mm) 0.125-0.010 0.125-0.033 0.125-0.010 0.125-0.033 0.125-0.010
Shift output of different material fineness(t) 0.8-12 0.6-10 0.4-8 0.3-6 0.2-4
Rotate speed of pulverizing ring(r/min) 140 148 160 170 180
Diameter of pulverizing ring(mm) 1006 973 907.5 850 725
Diameter of pulverizing roller(mm) 300 300 270 250 210
Height of pulverizing roller(mm) 160 160 150 150 150
Main Motor(kw) Y225M-8-30 Y225M-8-22 Y225M-8-22 Y225S-8-18.5 Y225M-8-15
Fan Motor Y180M-2-22 Y180L-4-22 Y160L-4-18.5 Y160L-4-15 Y160L-4-11
Analyzer Motor YCT180M-4A-4 YCT180M-4A-4 YCT180M-4A-4 YCT160-4B-3 YCT160-4B-3
