Building Materials Equipment

Raw Material Mill

Building Materials Equipment

The output of cement mill produced by Fote Machinery is 21~155 t/h, and the specific surface area of cement is 3300~3800 cm ² /g.

Applicable materials: iron ore, copper ore, gold ore, limestone, calcite, barite, dolomite, potassium feldspar, marble, talcum, gypsum.

Further communication inquire@sinoftm.com

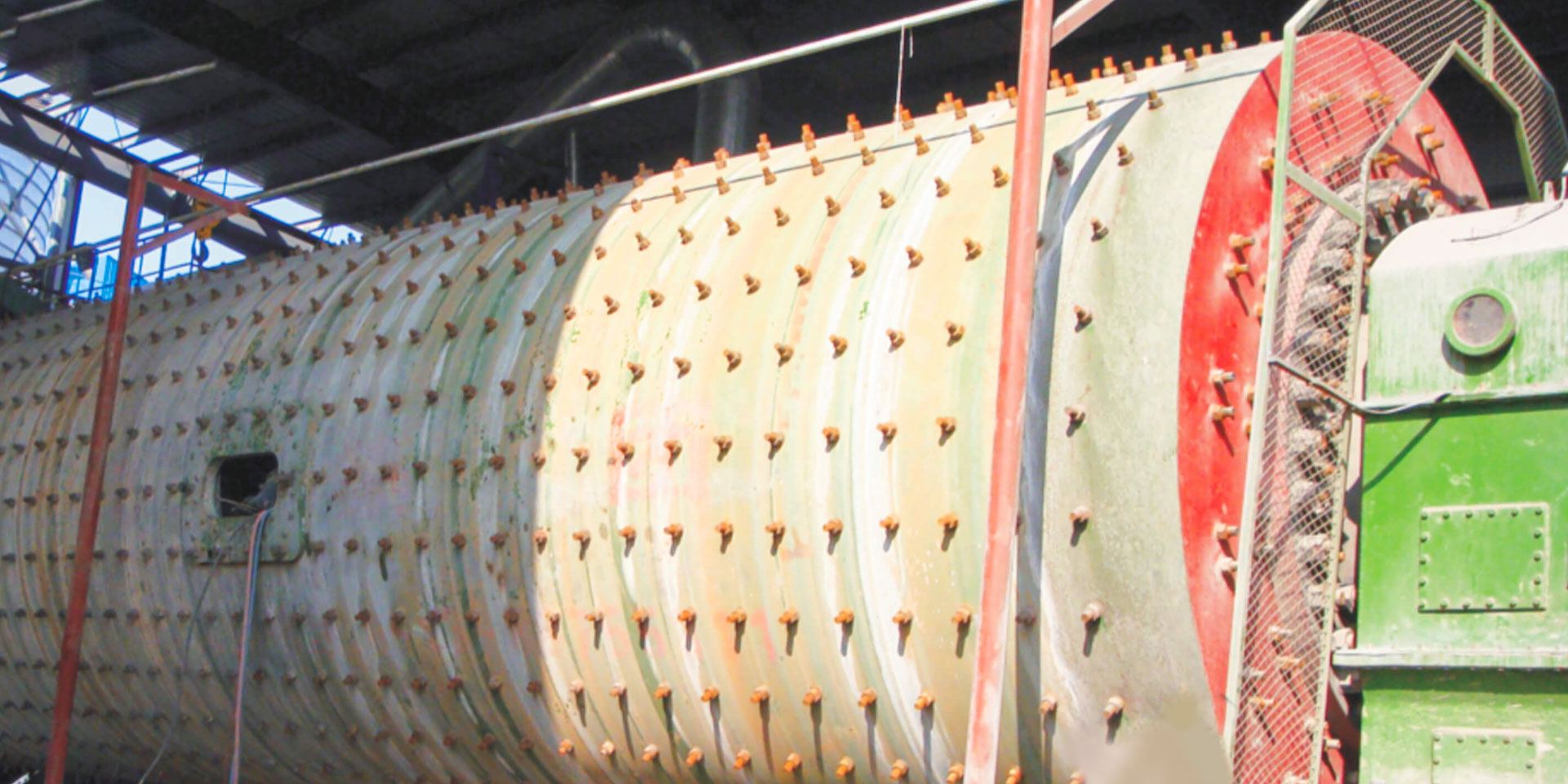

Raw Material Mill

video introduce benefits specs inquire


Production Introduction

Raw material mill is the critical equipment for re-crushing material that has been crushed and batched by crusher machine. It is the indispensable grinding equipment in cement production process. Raw material mill can be widely used in the industry of cement, silicate product, new building material, refractory material, glass and ceramics production. It can grind all kinds of ores and other grindable materials.

For details

The Main Benefits and Advantages:

Unique structure

Operation cost is low

1. High grinding efficiency. The raw material mill has the single silo structure. The inside lining board of mill is designed in combination. Users can choose the linings with different structures according to different grinding stages of raw material, so as to reach the high grinding efficiency.

2. Less investment and higher returns. The raw material mill produced by Fote Machinery needs low investment, which is less than 35~50% of traditional similar-scale traditional process equipment. What's more, it can meet the material supply of 250 ~ 2500 t/d cement production line.

For details

Easy operation

High degree of automation

After a long period of exploration and summarization in the design and production process, Fote Machinery has manufactured a series of raw material mill products with different specifications, different functional requirements, and rich variety. Especially in the grinding of ore slag and cement, we have more prominent advantages.


Working with us

Your best partner

Comprehensive services to customers
Perfect after-sale service system
Global service network

Online Chat

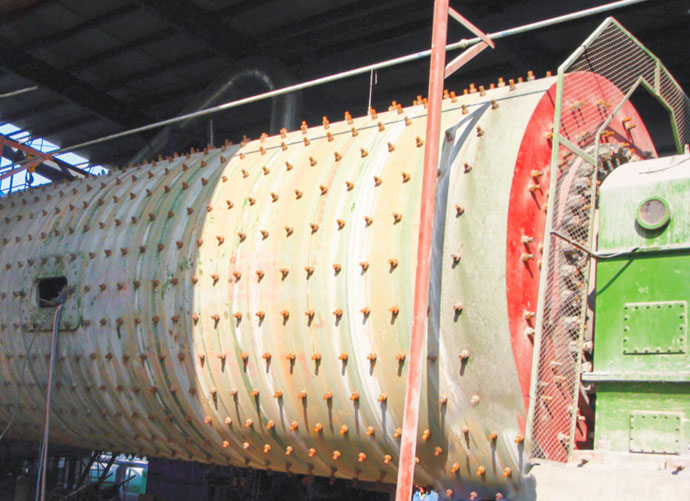

Raw Material Mill

Technical Parameter
To view more
Product specification
(m)
Milling form Transmission form Gear box Motor power
(kw)
Production capacity
(t/h)
Total weight
(t)
Model Speed reduction ratio
Φ1.5×5.7 Open flow Brim ZD40 3.55 130 4.5-6 25.8
Φ1.8×6.4 Open flow Brim ZD60 4.5 210 7.5-15 43
Φ2.2×6.5 Circle flow Brim ZD70 5 380 14-26 60
Φ2.4×7 Circle flow Brim ZD70 5 475 24-28 81
Φ2.4×10 Circle flow Brim ZD80-4-LL 6.44 570 32-36 118
Φ2.6×10 Circle flow Brim JDX710 6.3 800 45-50 130
Φ3×9 Open flow Brim JDX800 6.3 1000 55-60 158
Φ3.2×9 Circle flow Brim MBY900 7.1 1250 62-65 195
Φ3.5×10 Open flow Brim JDX900 5.84 1250 70-75 200
Φ3.8×7.5 Circle flow Brim JDX900 5.6 1600 80 233
Φ4.6×10+3.5 Circle flow Central shaft JQS3550 15.1 3550 190 415
Φ4.6×10.5+3.5 Circle flow Central shaft JQS3550 15.1 3550 210 476
×
