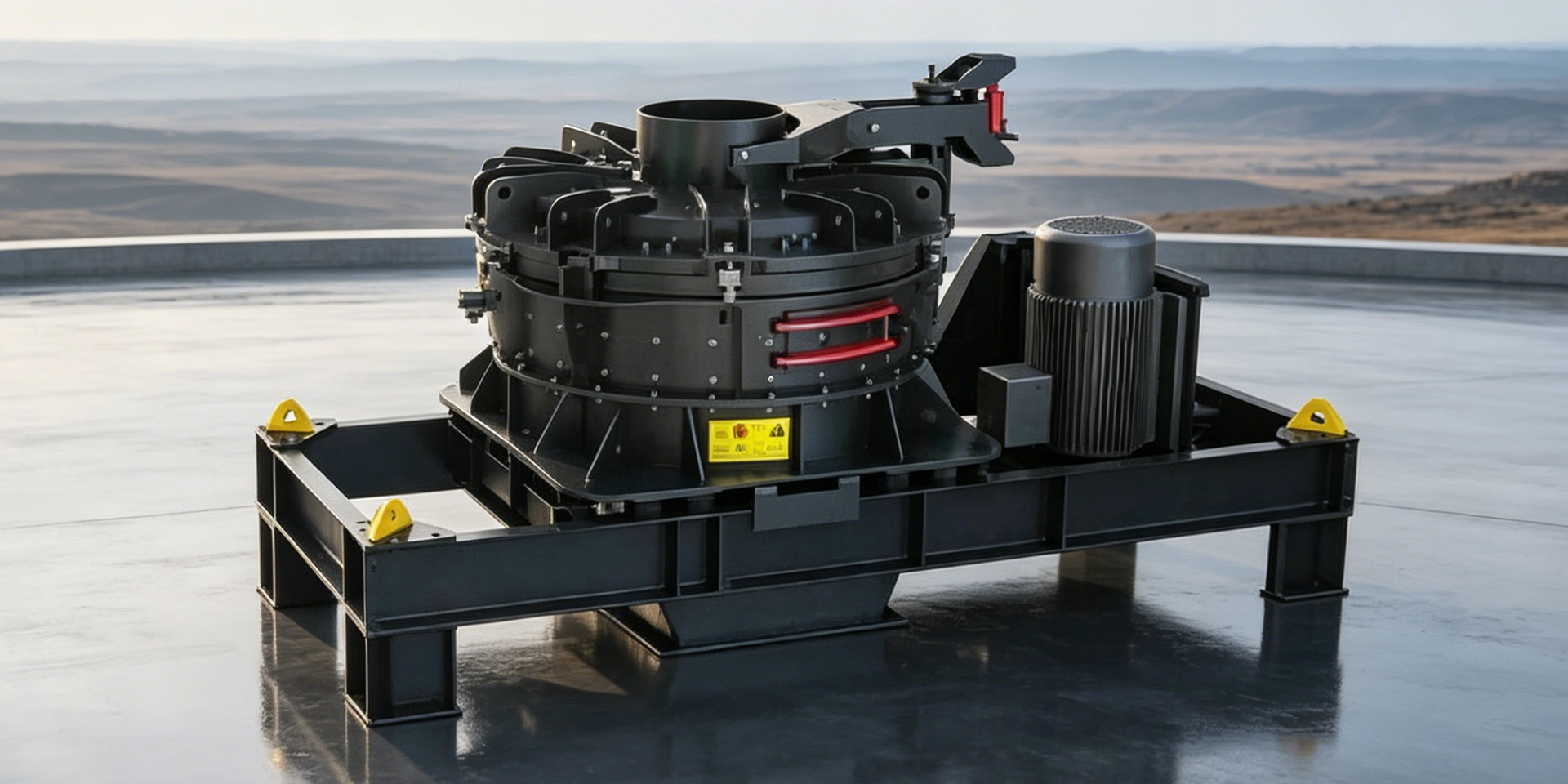

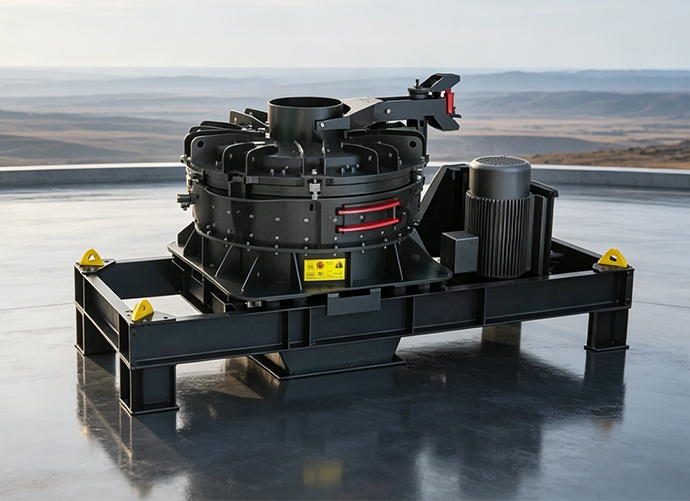

The ultrafine grinding sand making machine integrates international advanced technical concepts, and its unique cutting and grinding structure can realize the three-effect combination of " impact, shear, and grinding", filling the technical gap between coarse sand and powder, and opening a new era of complete grading.
Suitable for crushing all medium and low abrasive minerals, it is an ideal equipment for the production of high-quality mechanism sand for the concrete, asphalt and dry-mixed mortar industries.
Based on the unique design of the hammer head and the surrounding guard plate, a constant crushing gap is formed to achieve extremely high energy impact and precise crushing.
The shape of the finished particles is rounded, which effectively improves fluidity and compactness, and the gradation curve is stable, which does not change with the normal wear and tear of wearing parts.
The optimized structure and speed control ensure that the proportion of fine sand in the range of 0–3mm is significantly increased.
Through the independent research and development of the DCS centralized control platform and PLC system, real-time monitoring of the operating status of the equipment and intelligent management of the whole process are realized.
| Model | Rotor Diameter ×Height(mm) | Number of hammer rods (pieces) | Maximum circular speed(m/s) | Throughput (t/h) | Feeding size(mm) | Power (kw) | Dimensions(L×W×H) (mm) |
| FGM1113 | 1150×135 | 8 | 70 | 35-43 | ≤55 | 132 | 3750×1620×2360 |
| FGM1513 | 1500×135 | 12 | 70 | 70-82 | ≤55 | 200 | 4620×1990×2460 |
| FGM2215 | 2200×150 | 18 | 70 | 100-119 | ≤55 | 315 | 5730×2740×2630 |
Note: Processing capacity may vary with different materials and feeding sizes.
| Model | Number of hammer rods (pieces) | Throughput (t/h) | Feeding size(mm) |
| FGM1113 | 8 | 35-43 | ≤55 |
| FGM1513 | 12 | 70-82 | ≤55 |
| FGM2215 | 18 | 100-119 | ≤55 |
Note: Processing capacity may vary with different materials and feeding sizes.
