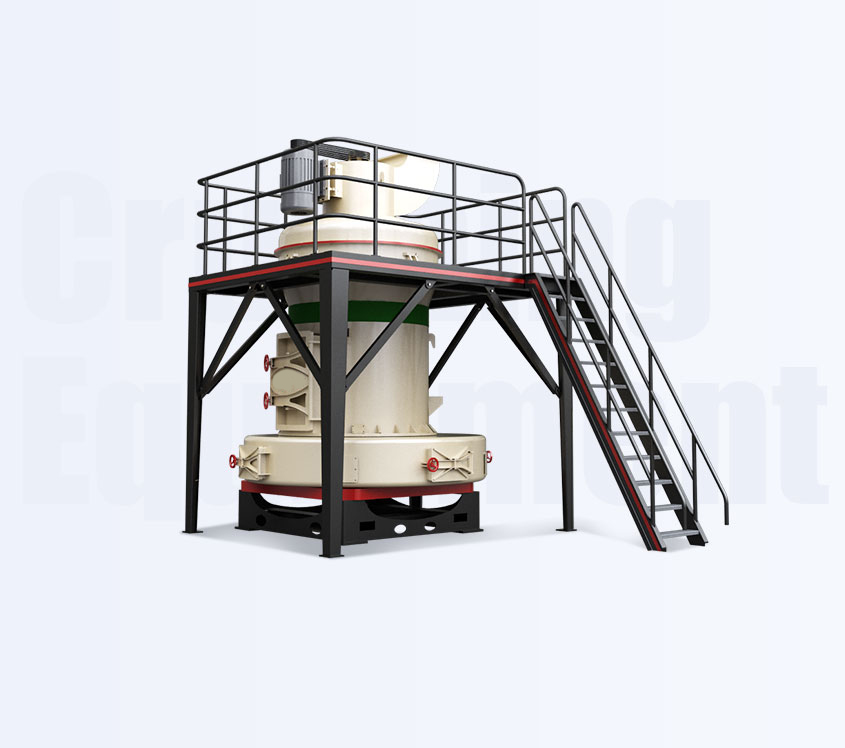

HGM Series Superfine Grinding Mill

HGM Series Superfine Grinding Mill

1.3-40t/hProduction Capacity

<40mmFeeding Size

contact us


Production Introduction

With several years’ experience in the research and development of the powder grinding equipment and the users’ actual usage situation of the grinding machines, to meet the demand in the powder grinding industry, absorbing the new powder grinding techniques and concepts at home and abroad, we developed the HGM series superfine grinding mill, a new kind of product with the international technical level.

For details

Application Range

This kind of powder grinding mill is applied to process non-flammable and explosive minerals, whose Moh’s hardness is less than 9.3 and whose humidity is below 7%, such as quartz stone, feldspar, calcite, limestone, talcum, marble, granite, iron ore, coal, etc. The fineness of its final product can be adjusted at random from 0.18mm (80 mesh) to 0.010mm(800 mesh).

For details

Outstanding Superiority

1. High output and high efficiency

2. Less energy consumption

3. Wide application range

4. Convenience in maintenance

5. Pulse dust collection

6. Refined grading


HGM Series Superfine Grinding MillTechnical Parameter

TO VIEW MORE
Type HGM100 HGM120 HGM130 HGM160 HGM175
Feeding
size (mm)
<20 <20 <25 <30 <35
Size of finished
product (mm)
0.25-0.015 0.25-0.015 0.25-0.015 0.25-0.015 0.25-0.015
Shift output
of different
material
fineness (t/h)
0.8-6 1.2-8 1.8-12 2.8-20 3.5-25
Rotate speed of
central shaft (r/min)
140 140 105 82 75
Diameter of
pulverizing ring (mm)
1075×200 1280×240 1400×240 1770×280 1900×300
Diameter of pulverizing
roller (mm)
320×200 370×240 410×240 450×280 500×300
Main
Motor (kw)
37 55 75 132 160
Fan
Motor (kw)
45 55 75 132 160
Analyzer
motor (kw)
11 15 18.5 22 30

The Main Benefits and Advantages

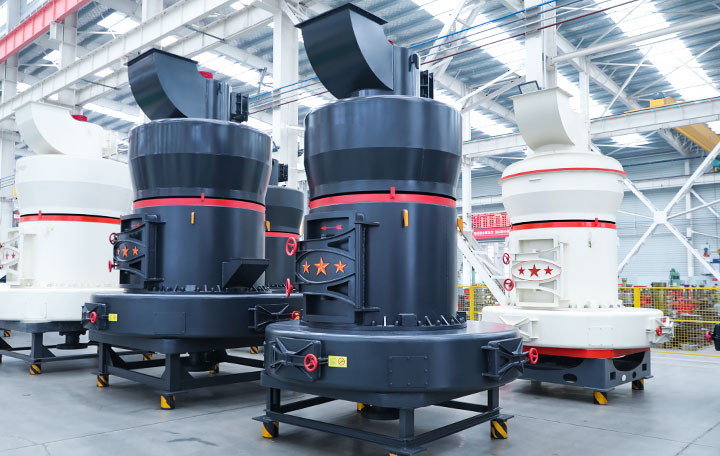

A super-large-scaled modern green industrial workshop 260000 square meters, large and medium-sized gold processing, maohan, assembly equipment more than 600 sets.
