Grinding Equipment

Powder Grinding Mill

Grinding Equipment

It is suitable for processing more than 200 kinds of materials with no more than 9 level Mohs hardness and less than 6% humidity.

Processing Materials: gypsum, talc, calcite, limestone, marble, barite, dolomite, granite, kaolin, bauxite, iron oxide red, iron ore, etc.

Further communication inquire@sinoftm.com

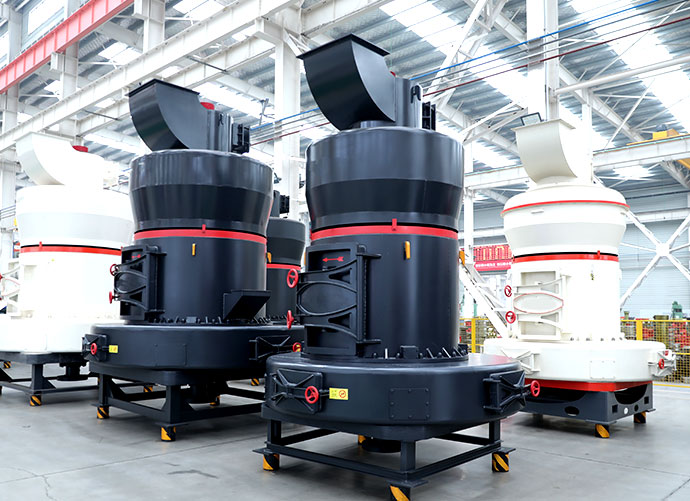

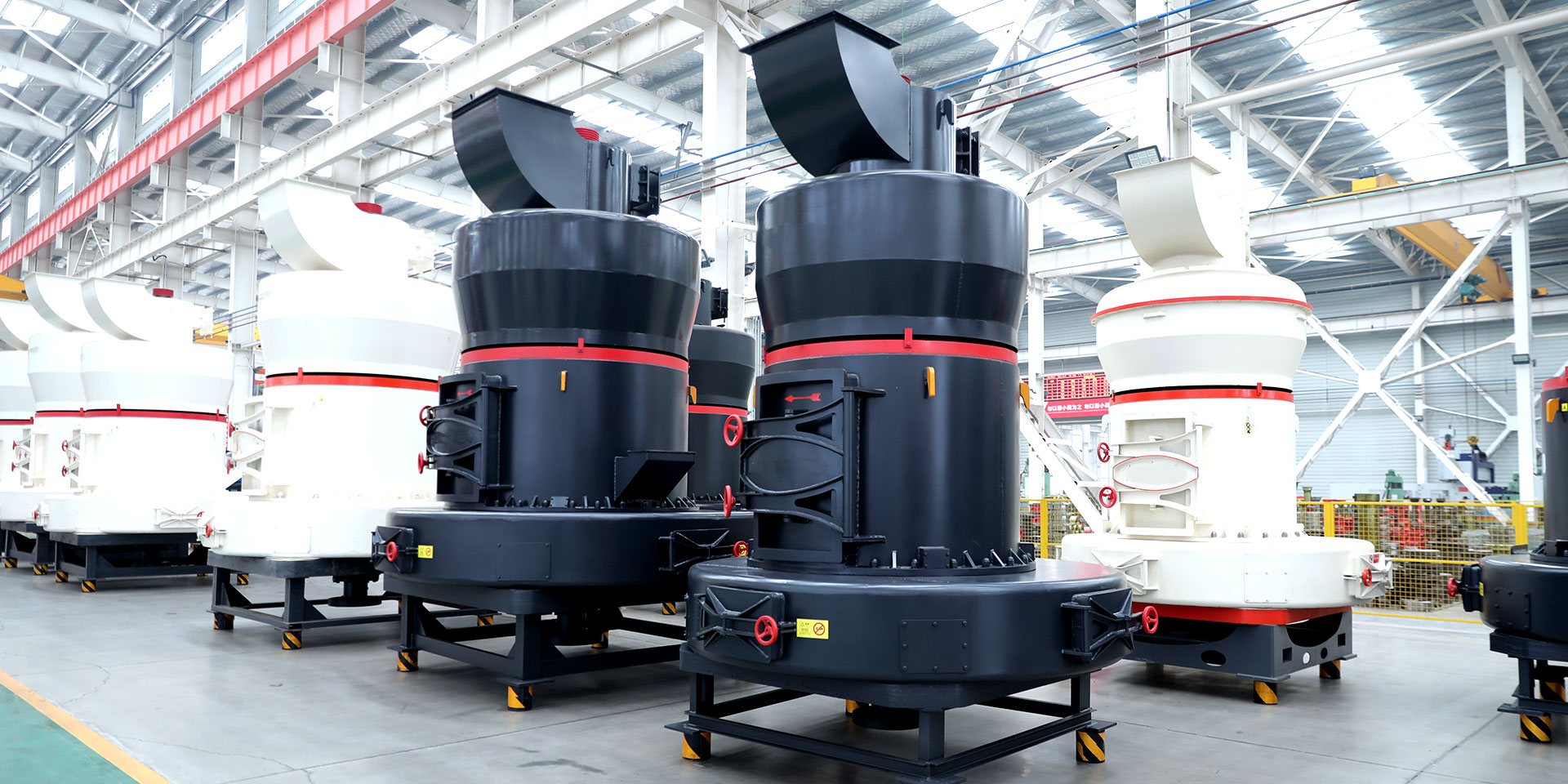

Powder Grinding Mill

video introduce benefits specs inquire


Production Introduction

Finished particle size can be adjusted between 80 to 425 meshes. After the improvement of high strength powder grinding mill, the smallest finished particle size can be up to 1000 meshes and the biggest can be up to up to 30 meshes. Its unique three-dimensional structure design is simple and practical with small footprint.

For details

The Main Benefits and Advantages:

Unique structure

Operation cost is low

1. Equipped with appropriative dust collector, making dust removal efficiency increased to 99.99%, which can ensure the safety of the equipment and personnel.

2. Dry production technology and zero sewage disposal can save resources and protect the environment.

3. Optimized equipment grinding principle removes complicated processes, which makes it more efficient and more environmentally friendly.

For details

Easy operation

High degree of automation

High strength powder grinding mill is mainly used for high-fine powder processing in calcium carbonate crushing and processing, gypsum powder processing, power plant desulfurization, non-metallic mineral milling, pulverized coal manufacturing and other fields. With stable and reliable operation, large production capacity, wearing parts are made of ultra wear-resistant materials with more lasting performance, so it is the widely welcomed once launched.


Working with us

Your best partner

Comprehensive services to customers
Perfect after-sale service system
Global service network

Online Chat

Powder Grinding Mill

Technical Parameter
To view more
     Parameter
Model
Raymond mill62 High strength66 High strength76 High strength87 High strength92 High strength93 High strength97 Raymond mill4119 Raymond mill4525
Feeding
size(mm)
<15 <15 <20 <25 <25 <25 <25 ≤25 ≤30
Size of finished
product(mm)
0.173-0.033 0.173-0.033 0.173-0.033 0.173-0.033 0.173-0.033 0.173-0.033 0.173-0.033 0.173-0.044 0.173-0.044
Shift output of
 different material
fineness(t)
0.6-9 1-20 1.5-25 2.8-33 3-36 3.5-40 4-52 8-78 16-176
Rotate speed
of central
shart(r/min)
274 190 170 161 148 140 130 105 82
Diameter of
pulverizing
ring(mm)
525 725 850 907.5 973 1006 1050 1400 1770
Diameter of
pulverizing
ring(mm)
150 210 250 270 300 300 310 410 450
Height of
 pulverizing
roller(mm)
100 150 150 150 160 160 170 190 250
Main Motor 7.5 15 18.5 22 30 30 37 75 132
Fan Motor 4-5.5 4-11 4-15 4-18.5 4-22 2-22 4-37 4-75 4-132
Analyzer Motor 6-1.1 6-2.2 6-2.2 6-2.2 6-2.2 6-3 4A-5.5 4B-7.5 4A-18.5
×
