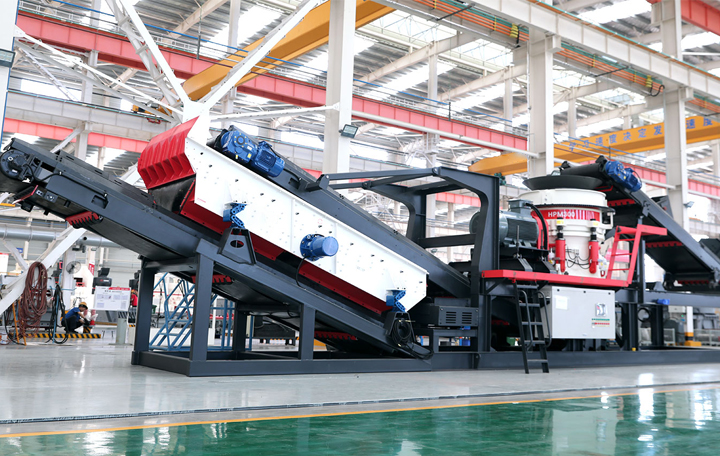

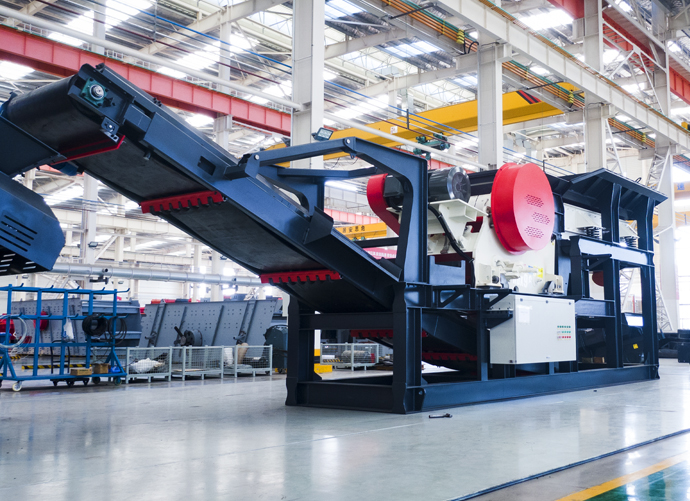

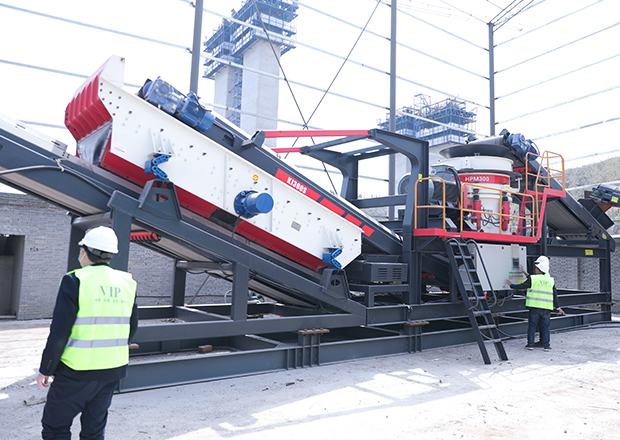

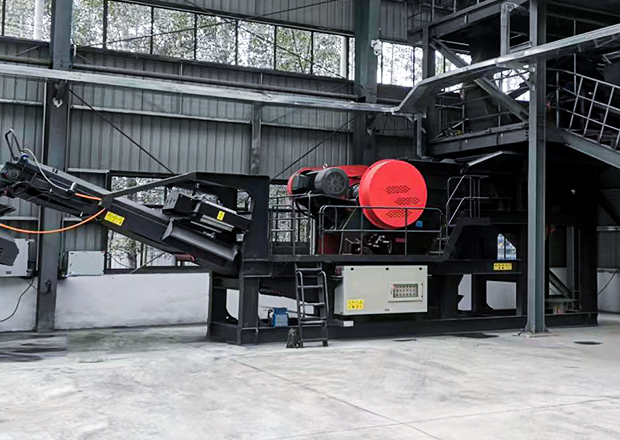

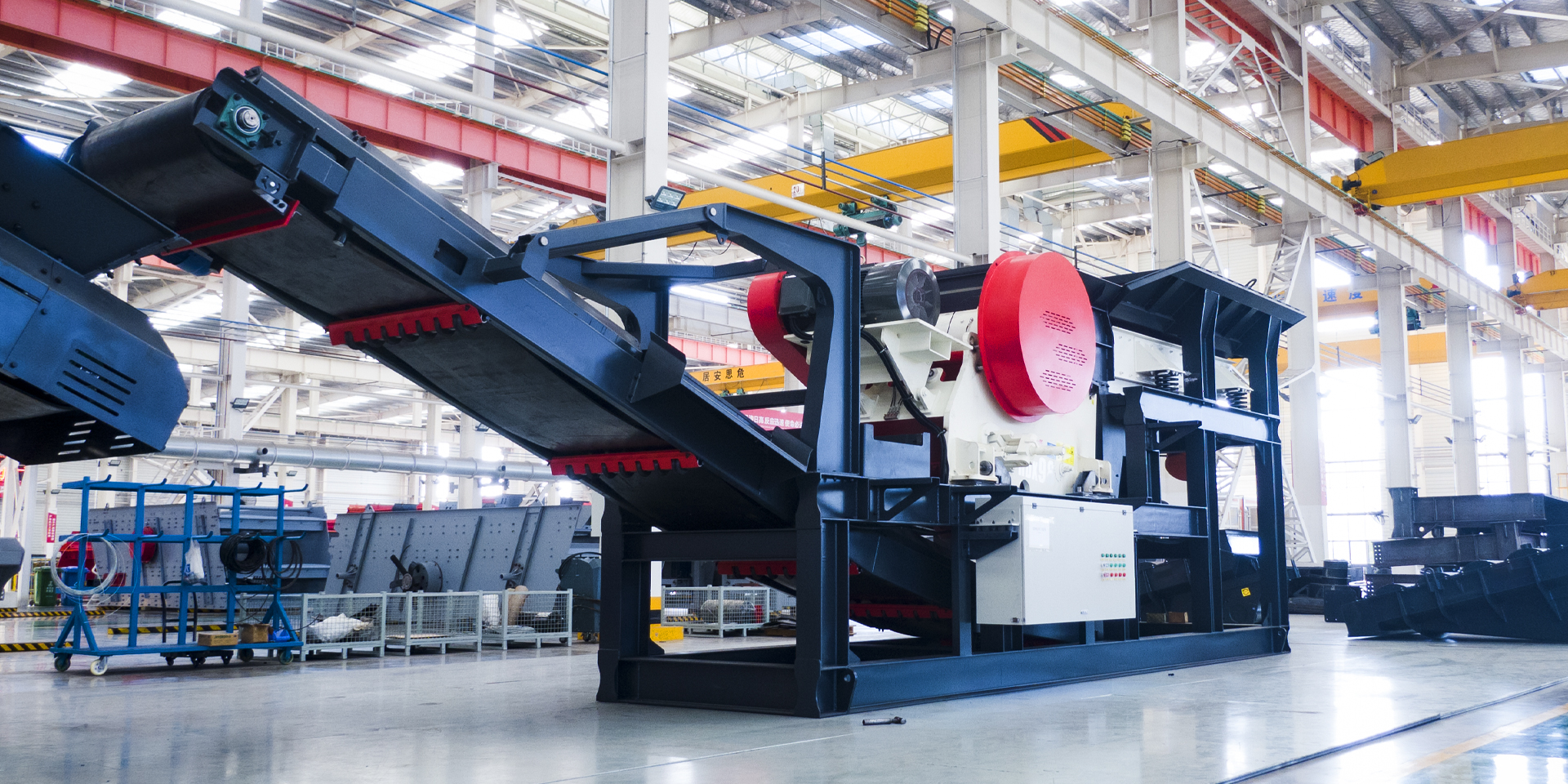

KJ series module crushing station is a mobile module crushing station developed by FOTE Machinery according to the current market situation.
CONTACT USKJ series module crushing station is a mobile module crushing station developed by FOTE Machinery according to the current market situation. The equipment has a high degree of integration. After simple lifting, it can be quickly put into production, and the on-site installation is convenient and fast.Compared with the decentralized working environment of the fixed production line, the modular and integrated design makes the equipment layout more flexible and the site more concise and reasonable.
Compared with the decentralized working environment of the fixed production line, the modular and integrated design makes the equipment layout more flexible and the site more concise and reasonable.
The equipment has a high degree of integration. After simple lifting, it can be quickly put into production, and the on-site installation is convenient and fast.
A super-large-scaled modern green industrial workshop 260000 square meters, large and medium-sized gold processing, maohan, assembly equipment more than 600 sets.
CONTACT US
| Series | Standard Model | On board equipment | On board equipment | Processing Capability (t/h) | Transport Dimensions (mm) |
| FOUR COMBINATION MODULARPIANT | KJ100Y-3 | GZDT0835/3HX1548 | HDX86/SC100F1 | 50-100 | 16500×3100×3700 |
| KJ150Y-3 | GZDT0835/3HX1548 | HDX86/SC160F1 | 70-150 | 16500×3100×3750 | |
| KJ150R-3 | GZDT0835/3HX1548 | HDX86/CI1110 | 60-150 | 16500×3100×3900 | |
| MOBILE COARSE MODULAR PIANT | KJ86 | GZDT0835 | HDX86 | 60-200 | 11800×2800×3750 |
| KJ98 | GZDT9538 | HDX98 | 100-300 | 12750×3020×3880 | |
| KJ110 | GZDT1145B | HDX110 | 150-400 | 13050×3050×4030 | |
| KJ106 | GZDT1140 | CJ106 | 150-400 | 13050×3050×4000 | |
| KJ120 | GZDT1240 | CJ120 | 175-500 | 13290×3100×4100 | |
| KJ1213 | GZDT9538 | CI1213 | 80-280 | 12970×3020×3920 | |
| KJ1316 | GZDT1145B | CI1316 | 100-350 | 13290×3050×4080 | |
| MOBILE MEDIUMAND FINE MODULAR PIANT | KJ300 | - | HPM300C1 | 100-200 | 15650×3270×3780 |
| KJ400 | 一 | HPM400C3 | 150-300 | 15800×3270×3800 | |
| KJ160 | - | SC160F1 | 60-200 | 15650×3270×3780 | |
| KJ250 | 一 | SC250F1 | 100-350 | 15600×3270×3800 | |
| KJ0926 | - | HVI0926 | 80-200 | 15400×2770×3780 | |
| KJ1040 | - | HVI1040 | 120-300 | 15400×2920×3970 | |
| MOBILE SCREENING MODULARPIANT | KJ1865S-3 | - | 3HX1865 | 65-300 | 15200×2900×3000 |
| KJ2165S-3 | - | 3HX2165 | 85-400 | 15200×2900×3200 | |
| KJ2465S-3 | - | 3HX2465 | 100-500 | 15500×2900×3400 | |
| RETURN MATERIAL SCREENING MODULARPIANT | KJ300S | YK1542 | HPM300C1 | 100-200 | 18200×3500×3800 |
| KJ160S | YK1542 | SC160F1 | 60-200 | 18200×3500×3800 | |
| KJ250S | YK1845 | SC250F1 | 100-350 | 18500×3500×3800 | |
| KJ1414S | YK1845 | PXJ1414 | 25-150 | 18200×3500×3800 |
Note: Processing capacity may vary with different materials and feeding sizes.
| Series | Standard Model | Processing Capability (t/h) |
| FOUR COMBINATION MODULARPIANT | KJ100Y-3 | 50-100 |
| KJ150Y-3 | 70-150 | |
| KJ150R-3 | 60-150 | |
| MOBILE COARSE MODULAR PIANT | KJ86 | 60-200 |
| KJ98 | 100-300 | |
| KJ110 | 150-400 | |
| KJ106 | 150-400 | |
| KJ120 | 175-500 | |
| KJ1213 | 80-280 | |
| KJ1316 | 100-350 | |
| MOBILE MEDIUMAND FINE MODULAR PIANT | KJ300 | 100-200 |
| KJ400 | 150-300 | |
| KJ160 | 60-200 | |
| KJ250 | 100-350 | |
| KJ0926 | 80-200 | |
| KJ1040 | 120-300 | |
| MOBILE SCREENING MODULARPIANT | KJ1865S-3 | 65-300 |
| KJ2165S-3 | 85-400 | |
| KJ2465S-3 | 100-500 | |
| RETURN MATERIAL SCREENING MODULARPIANT | KJ300S | 100-200 |
| KJ160S | 60-200 | |
| KJ250S | 100-350 | |
| KJ1414S | 25-150 |
Note: Processing capacity may vary with different materials and feeding sizes.
