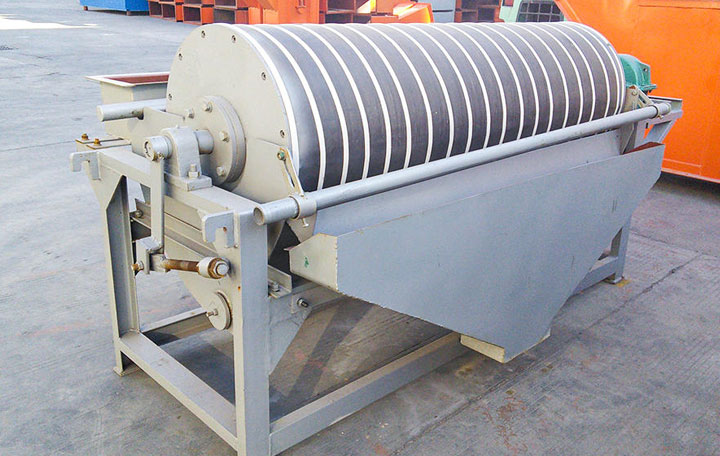

It is suitable for wet separating of materials with below 3mm particle size, such as magnetite, pyrrhotite, roasted ore, ilmenite.
CONTACT USMagnetic separator is suitable for wet magnetic separation of magnetite, pyrrhotite, roasted ore, ilmenite and other materials. It is also used for iron removing operations of coal, non-metallic minerals, building materials and other materials.
1. Reasonable structure, stable performance, and advanced design.
2. Advanced and reasonable process structure, and the combination of strong magnetic separation with anion anti-flotation are conducive to the realize the complementary advantages of the process.
3. The wearing parts are made of high-quality wear-resistant parts, making the equipment less wearing in the process of production and greatly extending the service life.
The magnetic separator produced by our company can be divided dry and wet magnetic separator according to different way of work. And we can provide downstream, semi-countercurrent, countercurrent, and other models of machine according to customers’ needs. Magnetic separator can separate materials with different magnetism, is one of the most widely used and versatile equipments in the industry. The two major factors to affect the magnetic separation is the feeding particle size of magnetic separation and pulp density.
A super-large-scaled modern green industrial workshop 260000 square meters, large and medium-sized gold processing, maohan, assembly equipment more than 600 sets.
CONTACT US
| Model |
Shell diameter （mm） |
Shell lenght （mm） |
Shell rotation speed（r/min） |
Feeding size （mm) |
Processing capacoty （t/h） |
Power（kw） |
| CTB6012 | 600 | 1200 | <35 | 2-0 | 10-20 | 1.5 |
| CTB6018 | 600 | 1800 | <35 | 2-0 | 15-30 | 2.2 |
| CTB7518 | 750 | 1800 | <35 | 2-0 | 20-45 | 2.2 |
| CTB9018 | 900 | 1800 | <35 | 3-0 | 40-60 | 3 |
| CTB9021 | 900 | 2100 | <35 | 3-0 | 45-60 | 3 |
| CTB9024 | 900 | 2400 | <28 | 3-0 | 45-70 | 4 |
| CTB1018 | 1050 | 1800 | <20 | 3-0 | 50-75 | 5.5 |
| CTB1021 | 1050 | 2100 | <20 | 3-0 | 50-100 | 5.5 |
| CTB1024 | 1050 | 2400 | <20 | 3-0 | 60-120 | 5.5 |
| CTB1218 | 1200 | 1800 | <18 | 3-0 | 80-140 | 5.5 |
| CTB1224 | 1200 | 2400 | <18 | 3-0 | 85-180 | 7.5 |
| CTB1230 | 1200 | 3000 | <18 | 3-0 | 100-180 | 7.5 |
| CTB1530 | 1500 | 3000 | <14 | 3-0 | 170-280 | 11 |
| Model | Feeding size （mm） |
Processing capacity （t/h） |
| CTB6012 | 2-0 | 10-20 |
| CTB6018 | 2-0 | 15-30 |
| CTB7518 | 2-0 | 20-45 |
| CTB9018 | 3-0 | 40-60 |
| CTB9021 | 3-0 | 45-60 |
| CTB9024 | 3-0 | 45-70 |
| CTB1018 | 3-0 | 50-75 |
| CTB1021 | 3-0 | 50-100 |
| CTB1024 | 3-0 | 60-120 |
| CTB1218 | 3-0 | 80-140 |
| CTB1224 | 3-0 | 85-180 |
| CTB1230 | 3-0 | 100-180 |
| CTB1530 | 3-0 | 170-280 |
