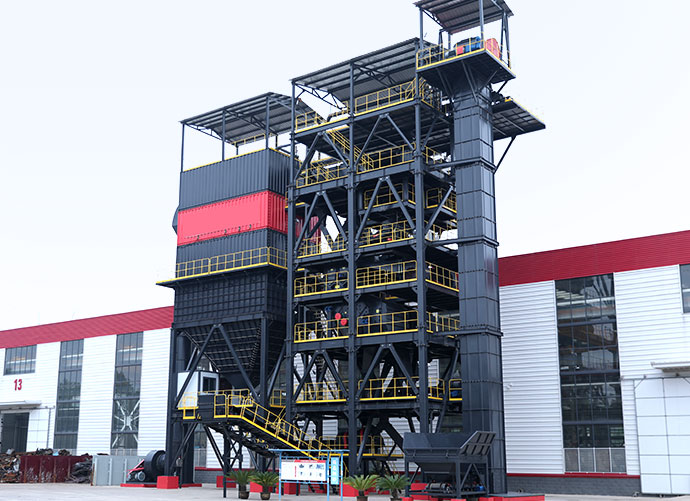

The S7 series tower type dry sand making system is based on our company's digestion and absorption of the international advanced dry sand making concept.
CONTACT USThe S7 series tower type dry sand making system is based on our company's digestion and absorption of the international advanced dry sand making concept, in order to meet the high reliability and high performance requirements of customers such as high-quality sand and gravel quarries, cement plants, mixing plants, etc. The most advanced crushing, screening, dust removal, powder selection and intelligent control technology, complete sets of equipment developed and produced.
Operating with environmental protection, high integration, and saving space.
A super-large-scaled modern green industrial workshop 260000 square meters, large and medium-sized gold processing, maohan, assembly equipment more than 600 sets.
CONTACT US
| Model | Input size（mm） | Capacity（t/h） | output of manufactured sand |
Power（KW） | Overall dimension L×W×H （M） |
| S7-60 | 0-15 | 60 | 3-15% | 470 | 26×6×25 |
| S7-100 | 0-15 | 100 | 3-15% | 750 | 30×9×27 |
| S7-150 | 0-15 | 150 | 3-15% | 980 | 30×9×30 |
| S7-300 | 0-15 | 300 | 3-15% | 2000 | 30×20×30 |
Raw material moisture content: mud content of feeding <1%, water content <2%
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Input size（mm） | Capacity（t/h） | output of manufactured sand |
Power（KW） |
| S7-60 | 0-15 | 60 | 3-15% | 470 |
| S7-100 | 0-15 | 100 | 3-15% | 750 |
| S7-150 | 0-15 | 150 | 3-15% | 980 |
| S7-300 | 0-15 | 300 | 3-15% | 2000 |
Raw material moisture content: mud content of feeding <1%, water content <2%
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
