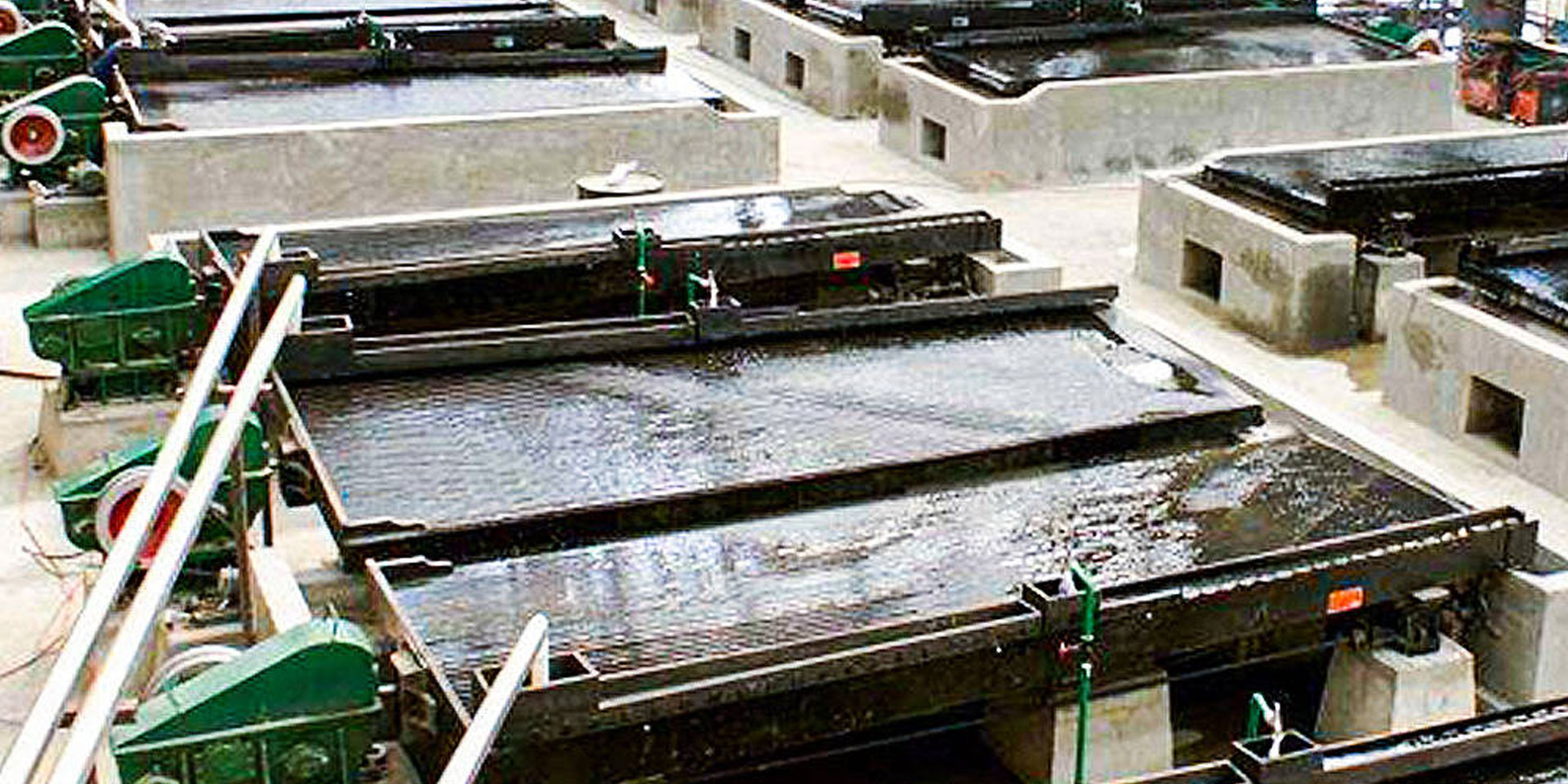

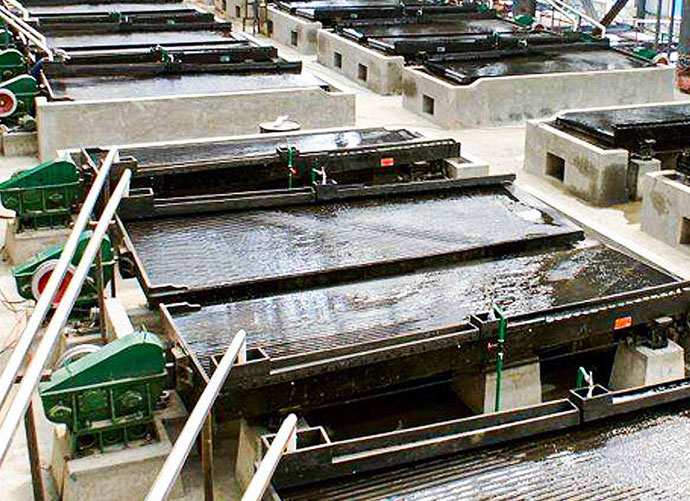

Concentrator Table

Concentrator Table

Applied Materials: tin, tungsten, gold, silver, lead, zinc, tantalum, niobium, iron, manganese, titanium and coal, etc.

10-60t/dHandling Capacity

0.15-2mmFeeding Size

contact us


Production Introduction

The Concentrator Table, a kind of gravity mineral processing equipment, is used to separate the materials with fine grain, such as copper, gold, silver, etc. With our several years’ experience in the production and innovation of the Concentrator Table, with the development of the shaking table, both of its handling capacity and recycling rate and concentration are greatly increased.

For details

Properties and Advantages

1. The Concentrator Table with the domestic gravity mineral processing techniques is of high concentration ratio, good separation effect, and convenience in the operation, etc.

2. Its final product is of nice quality and the final concentrate and tailing can be gotten once.

3. Different from the traditional technique, it is of less energy consumption and convenience in management and it doesn’t need agents.

4. It is a cost-effective machine. It is not expensive.

For details

Working Principle of Concentrator Table

The ore grain is on the surface of the inclined Concentrator Table. By virtue of the combined effect of the mechanical slate symmetry reciprocating motion and the water flow on the surface, the ore grain is scattered and layered, which can make the minerals be separated by different densities.


Concentrator TableTechnical Parameter

TO VIEW MORE
Name Grit
concentrator
 table
Fine sand
concentrator
 table
Sludge
concentrator
 table
Bed surface
Dimensions
Length
(mm)
4450 4450 4450
Driving
part Width
(mm)
1855 1855 1855
Concentrate
part Width
(mm)
1546 1546 1546
Max.feeding
size(mm)
2 0.5 0.15
Feeding
amount
(t/d)
30-60 10-20 15-25
Feeding
thickness
(%)
25-30 20-25 15-25
Stroke
(mm)
16-22 11-16 8-16
Frequency
(f)
45-48 48-53 50-57
Bed surface
Water quantity
(t/d)
80-150 30-60 10-17
Bed surface
Horizontal
obliquity(°)
2.5-4.5 1.5-3.5 1-2
Bed surface
Portrait
obliquity(%)
1.4 0.92 ----
Table board
corner(°)
32-42 40 42
Concentrating
area(㎡)
7.6 7.6 7.6
Bed surface
Length ratio
2.6 2.6 2.6
Shape of
side-bed
surface
Rectangle Zigzag Triangle
Motor
power(kw)
1.1 1.1 1.1
Transmission
device
Eccentricity Linkage

The Main Benefits and Advantages

A super-large-scaled modern green industrial workshop 260000 square meters, large and medium-sized gold processing, maohan, assembly equipment more than 600 sets.
