Application fields:Calcium carbonate crushing processing, gypsum powder processing, power plant desulfurization, non-metallic mineral powder, coal powder preparation, etc.
500-7000kg/h Production capacity
400-3000 mesh Number of fineness

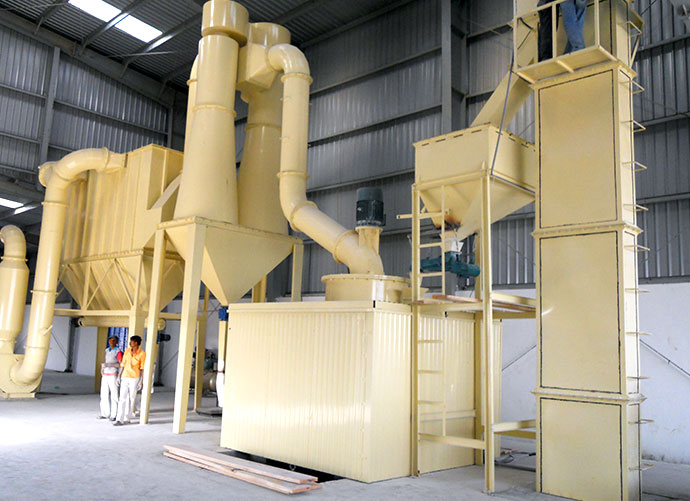

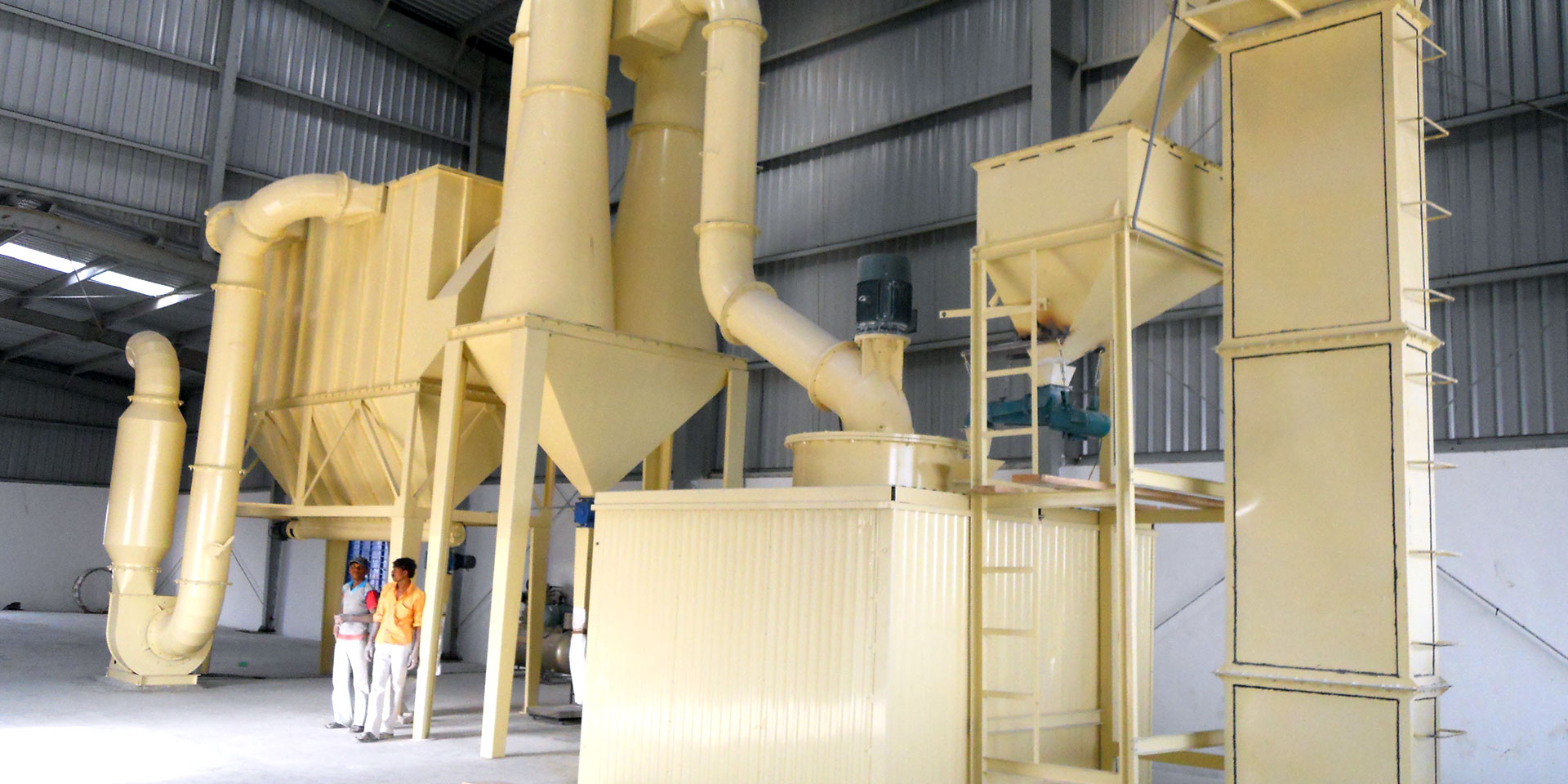

Three-ring medium-speed micro grinding mill is a new type of ultrafine grinding machine, which adopts the method of grading continuous grinding, and carries out repeated cycle grinding for materials at the same time. The finished product has finer particle size and higher efficiency and can be used for ultrafine grinding of various non-flammable and explosive brittle materials with Mohs hardness no higher than grade 5. Compared with the traditional Raymond mill, it has the advantages of fine particle size and low energy consumption.
For detailsHigh Finished Product Fineness This machine adopts graded grinding, the finished product has high fineness, and the final fineness can reach d97≤5μm at one time.
Reliable and Safe Work There are no rolling bearings and no screws in the grinding chamber. There is no problem that the bearing and its seal are vulnerable and the screw is easy to loose and destroy the machine.
Long Lasting In the case of the same fineness of materials and finished products, it has a longer service life than the wear parts of ordinary mill equipment, generally up to 1 year.
For details
| Mesh Model | FTMM-1021 | FTMM-800 | ||
| Output(kg/h) | Power(kw/h) | Output(kg/h) | Power(kw/h) | |
| 400 | 6000-7000 | 22 | 4000-5000 | 27 |
| 800 | 3000-3500 | 45 | 1800-2100 | 60 |
| 1250 | 2000-2500 | 70 | 1200-1500 | 95 |
| 1500 | 1800-2000 | 73 | 1000-1200 | 110 |
| 1800 | 1500-1800 | 90 | 800-1000 | 136 |
| 2500 | 1200-1300 | 120 | 600-800 | 175 |
| 3000 | 900-1100 | 145 | 500-700 | 200 |
