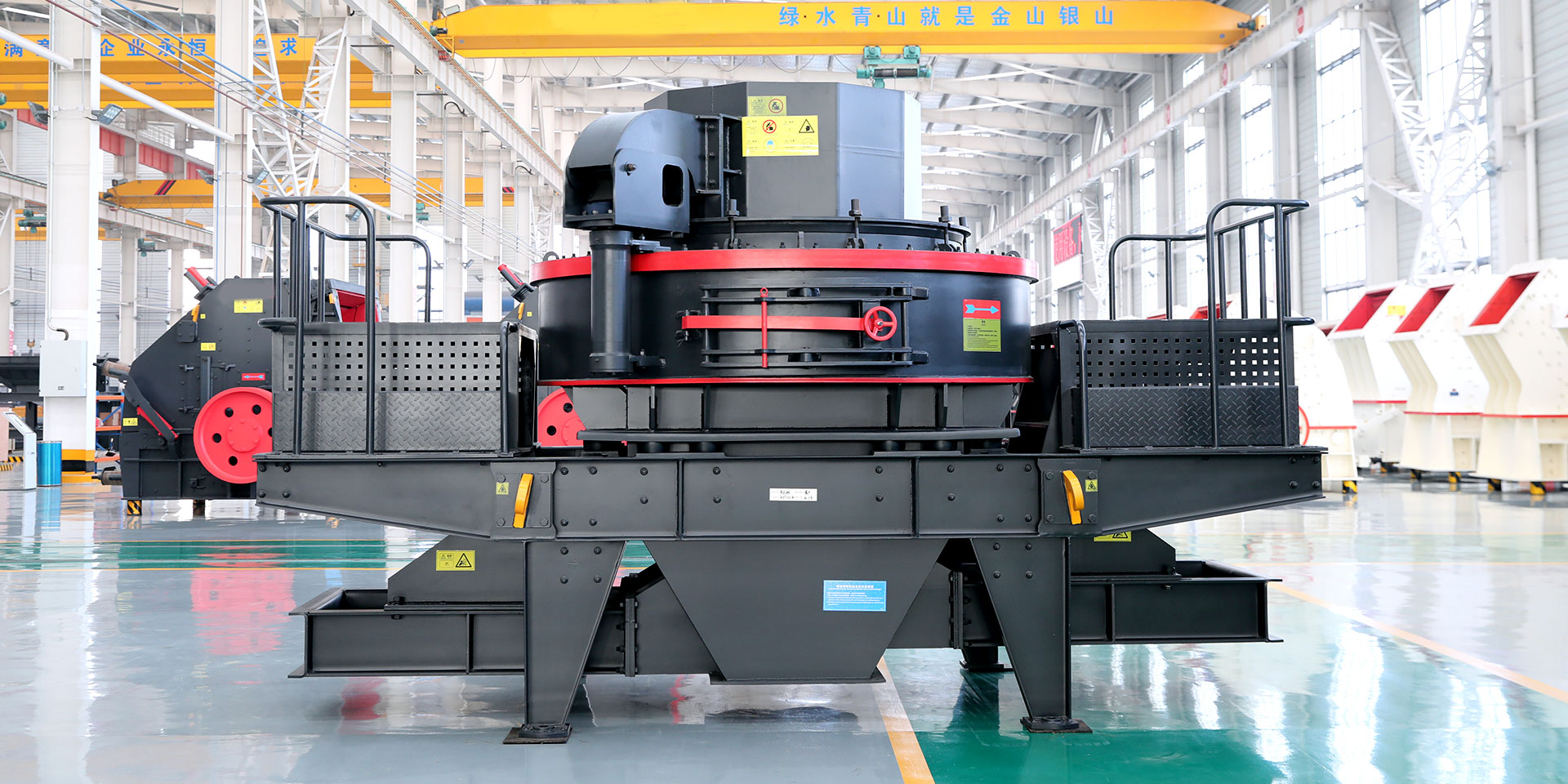

VSI Sand Maker

VSI Sand Maker

It is used for the crushing and plastic of soft, medium hard or super hard, and it can help to recover the investment in 4-5 monthes.

60-520t/h Production Capacity

≤50mmFeed size

contact us


Production Introduction

Comparing with similar domestic products, VSI new-type sand maker has higher output, good grain shape and low use costs. This machine is especially applicable to provide superior-quality gravel aggregate for high-rise buildings, highway (railway) construction, municipal engineering, large water conservancy facilities, concrete mixing plants, etc.

For details

The Main Benefits and Advantages:

Unique structure

Operation cost is low

1.Low consumption of wearing parts The best crushing cavity angle design, reduce the friction between material and wear-resistant parts, the operating cost is 30% lower than traditional equipment.

2. Large capacity, high yield, excellent product grain Compared with traditional equipment under the same power, the VSI yield increased by 30% and runs stable. Products are cubes with good grain shape, reasonable gradation, fineness modulus is adjustable, especially suitable for artificial sand and stone shaping.

For details

Easy operation

High degree of automation

VSI series high-efficiency vertical shaft impact crusher (new sand maker) is an international advanced level, high-efficiency sand maker that researched and developed after a number of technical optimization, based on our introduction of German advanced technology, combining with domestic actual sand making situation. Pay attention to environmental protection Sand-making equipment works with little noise and no pollution. Unique air self-circulatory system greatly reduces the external exhaust air volume, reduces dust, which is conducive to environmental protection. In addition, the VSI sand maker is reserved and suitable for installation of various specifications of dust removal equipment.


VSI Sand MakerTechnical Parameter

Model VSI 7611 VSI 8518 VSI 9526 VSI 1140 VSI 1145 VSI 1150
Feed both at center and sides 80-180 140-260 200-380 300-520 350-610 360-650
Feed at center 40-90 70-130 100-190 160-260 180-355 190-365
Max.feeding size
Soft material 35 40 45 50 50 50
Hard material 30 35 40 40 45 45
Rotation speed(r/min) 1700-1890 1520-1690 1360-1510 1150-1300 1150-1300 1150-1300
Motor power(kw) 4P   110 4P   180 4P   264 4P   400 4P   440 4P   500
Overall dimension(L×W×H)(mm) 4100×2250×2300 4160×2320×2900 4560×2450×2830 5500×2700×3100 5500×2700×3100 5500×2700×3100

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

The Main Benefits and Advantages

A super-large-scaled modern green industrial workshop 260000 square meters, large and medium-sized gold processing, maohan, assembly equipment more than 600 sets.
