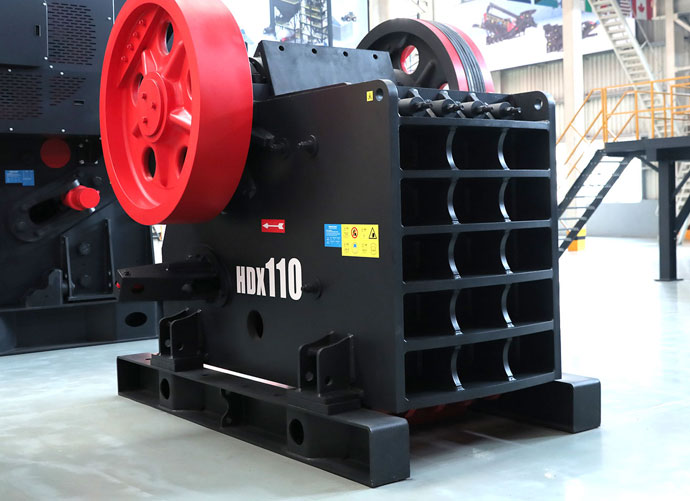

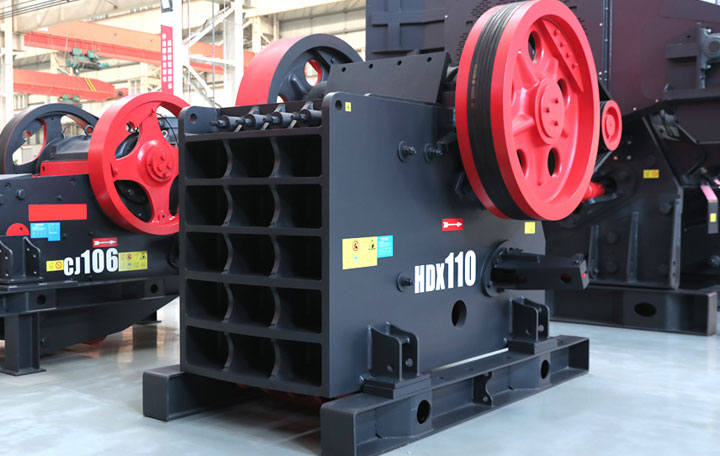

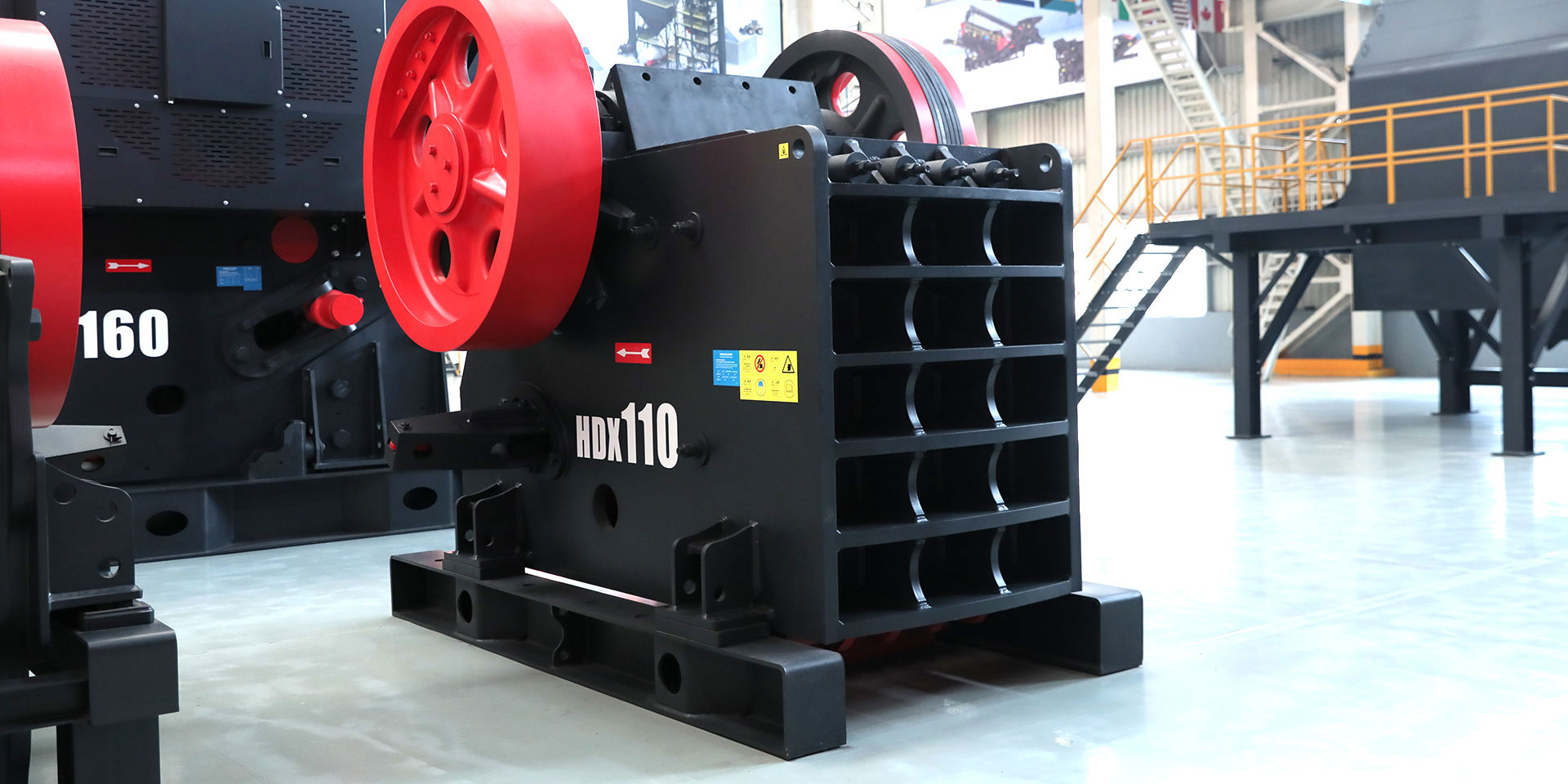

The HDX german type jaw crusher is an upgraded product based on the HD German type jaw crusher based on the combination of many customer sites and market needs. It saves space, easy to operate, and reduces the cost of infrastructure construction, installation, operation and maintenance.
The integral motor frame makes the installation easier;reduces the installation space;The crusher moves synchronously with the integral motor main shaft, which improves the load on the V-belt.
The steel toggle plate is light in weight, easy to replace, and bends when exceeded, avoiding damage to the conveyor belt when the traditional cast iron toggle plate breaks and falls.
There are two adjustment methods: mechanical and hydraulic.The discharge opening can be adjusted within a few minutes,which greatly reduces labor intensity and downtime; this system is especially effective to clean the cavity.
| Model | Feeding opening size(mm) | Maximum feeding size （mm） | Adjustment range of discharge port（mm） | Processing capacity(t/h) | Power(kw) | Dimensions L×W×H（mm） |
| HDX72(57) | 720×460 | 425 | 45-100 | 50-120 | 6P 55 | 2450×2160×1615 |
| HDX86(69) | 860×580 | 500 | 50-150 | 60-280 | 8P 75 | 3005×2392×1780 |
| HDX98(751) | 980×680 | 630 | 75-175 | 110-410 | 8P 110 | 3372×2530×2145 |
| HDX110(912) | 1100×850 | 750 | 100-200 | 170-550 | 6P 132 | 3592×2670×2515 |
| HDX125 | 1250×950 | 900 | 125-225 | 280-750 | 8P 160 | 4214×2810×2887 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Feeding opening size(mm) | Maximum feeding size （mm） | Processing capacity(t/h) |
| HDX72(57) | 720×460 | 425 | 50-120 |
| HDX86(69) | 860×580 | 500 | 60-280 |
| HDX98(751) | 980×680 | 630 | 110-410 |
| HDX110(912) | 1100×850 | 750 | 170-550 |
| HDX125 | 1250×950 | 900 | 280-750 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
