SC/H800i Series Cone Crusher

SC/H800i Series Cone Crusher SC/H800i Series Cone Crusher

High-quality products

are our core competitiveness

Internal Structure

Production Introduction

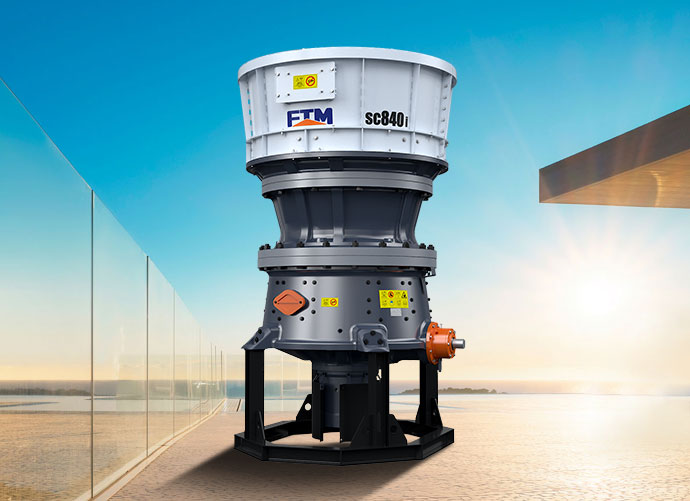

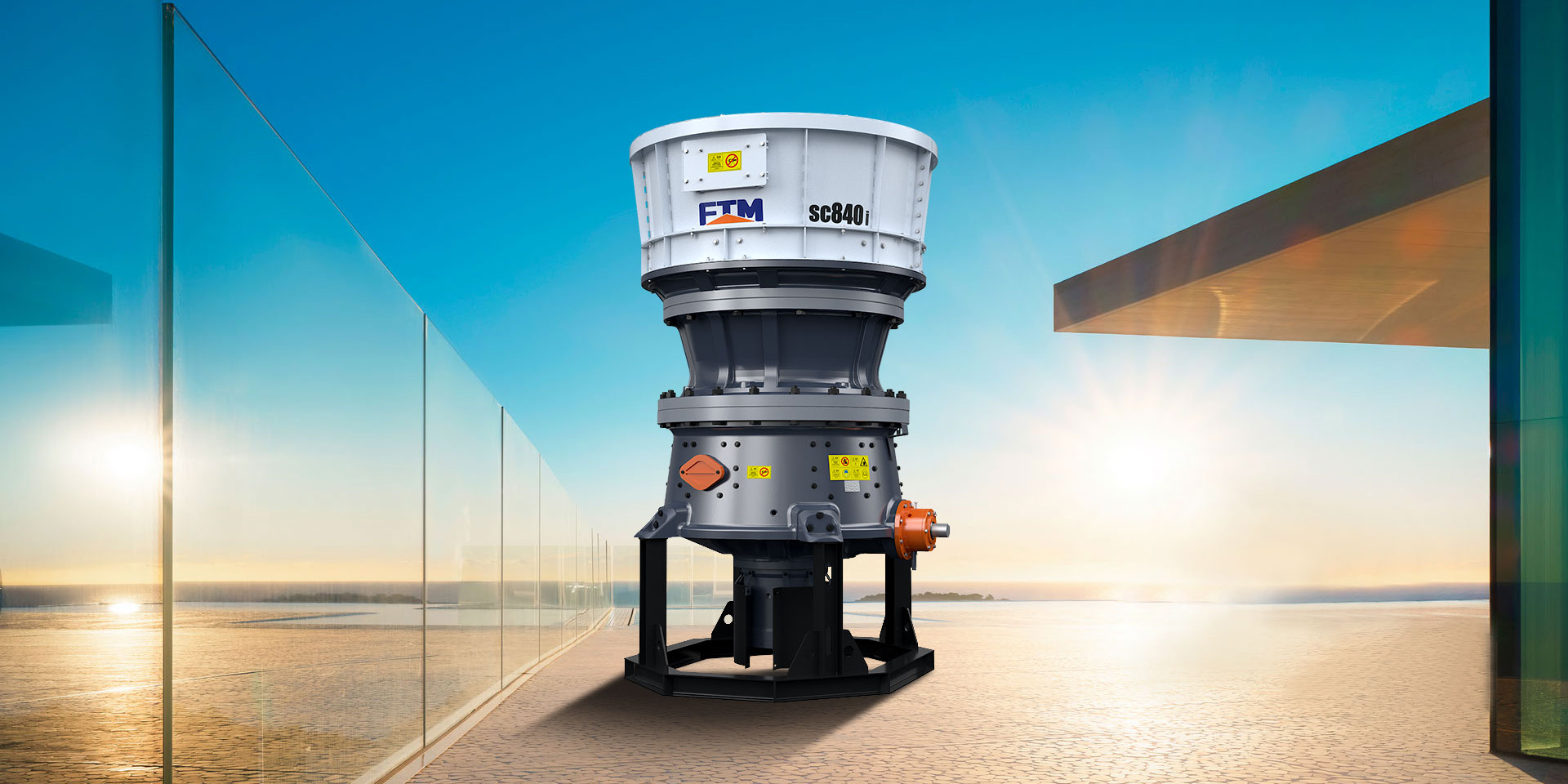

SC/H800i series single cylinder cone crusher of China Henan Fote Group is a new generation product comprehensively upgraded on the basis of SC series cone crusher according to market demand and focusing on the forefront of the times. While inheriting many advantages of SC series, this series crusher adopts a cavity design with larger eccentricity, higher rotating speed and larger crushing ratio, so as to improve throughput and yield and reduce equipment energy consumption. The equipment incorporates the most advanced Internet concept: all-weather connectivity to the Internet of Things platform, effectively improving productivity, predicting performance, and maximizing the uptime of the equipment.

CONTACT US

THE MAIN BENEFITS AND ADVANTAGES

The industrial Internet of Things platform can be used to access crusher production data all weather, predictive maintenance of equipment and improve equipment utilization;

The upper and lower frame body and the main shaft are reinforced to greatly improve the reliability of the equipment;

Standard off-line filtration system can ensure all-weather lubricating oil filtration, reduce the internal wear of crusher parts, extend the service life of lubricating oil up to 5 times;

The new intelligent system can track all operational data, optimize parameters, deal with faults, and quickly complete maintenance.

SC/H800i Series Cone CrusherTechnical Parameter

TO VIEW MORE
Model Cavities Feeding Size
(mm)
Maximum Feeding Size
(mm)
Minimum Discharging Size
(mm)
Processing Capacity
(t/h)
Power
(kw)
SC840i C1 431 345 25 230-659 315
C2 345 275 22 212-645
SH830i F1 211 169 13 113-283 250
F2 93 74 8 84-212
F3 61 49 5 61-139
SH840i F1 250 200 16 162-371 315
F2 159 127 16 187-406
F3 73 58 10 126-232
SH860i F1 315 252 16 259-799 500
F2 169 135 16 281-867
SH865i F3 85 68 10 179-468
SH870i F1 350 280 25 392-1173 630
F2 184 147 19 351-1195
F3 99 79 13 236-747
SH890i F1 428 342 25 488-1670 800
F2 302 242 22 524-1789
F3 219 175 19 460-1677
SH895i F4 112 90 13 291-910
F5 89 71 10 258-839

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model Cavities Feeding Size
(mm)
Processing Capacity
(t/h)
SC840i C1 431 230-659
C2 345 212-645
SH830i F1 211 113-283
F2 93 84-212
F3 61 61-139
SH840i F1 250 162-371
F2 159 187-406
F3 73 126-232
SH860i F1 315 259-799
F2 169 281-867
SH865i F3 85 179-468
SH870i F1 350 392-1173
F2 184 351-1195
F3 99 236-747
SH890i F1 428 488-1670
F2 302 524-1789
F3 219 460-1677
SH895i F4 112 291-910
F5 89 258-839

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
