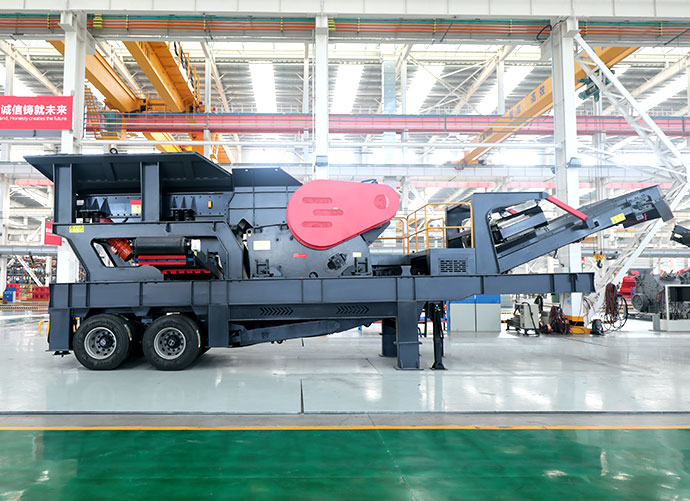

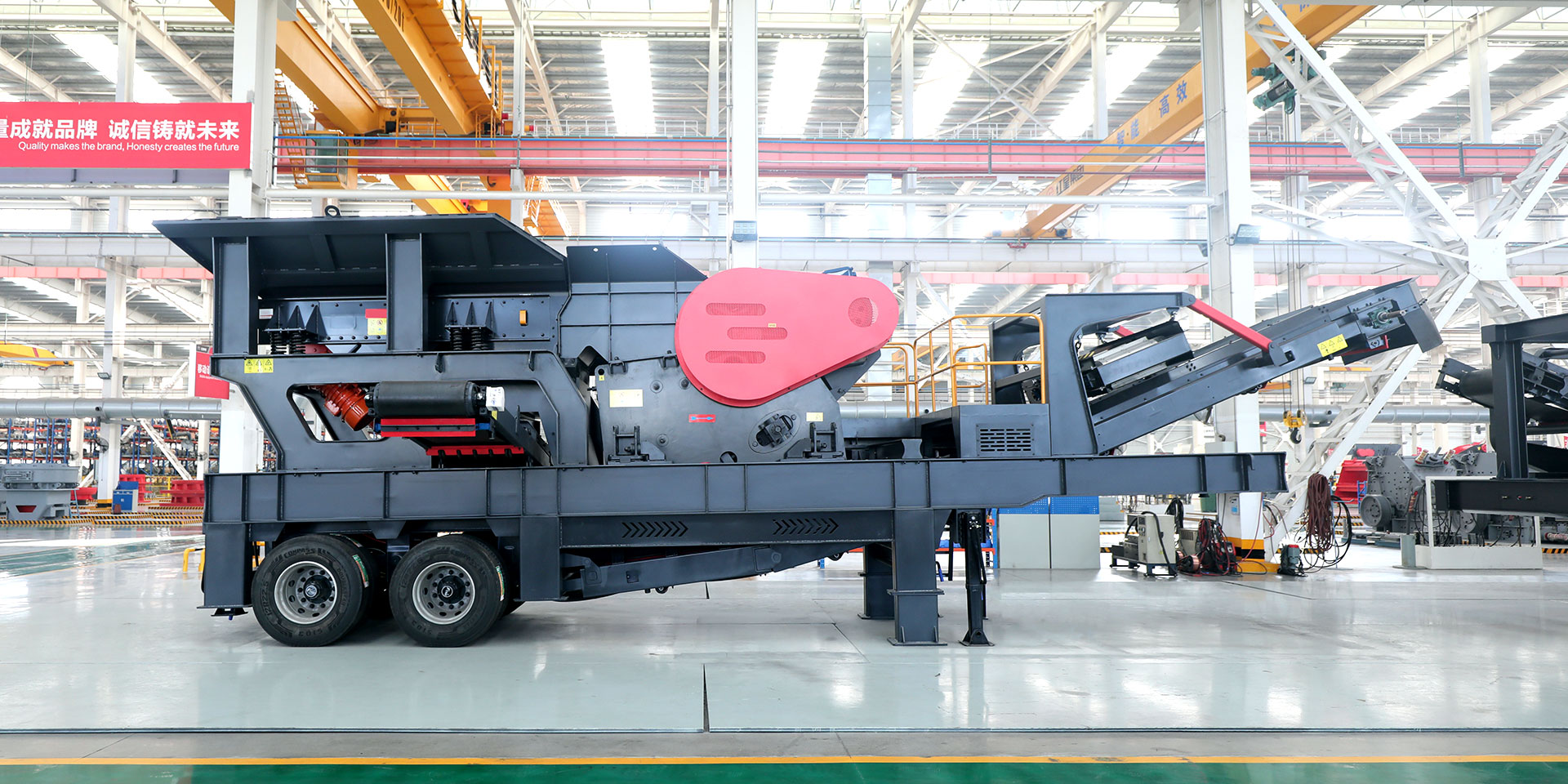

MTN Wheel Type Mobile Crushing And Screening Plant

MTN Wheel Type Mobile Crushing And Screening Plant MTN Wheel Type Mobile Crushing And Screening Plant

High-quality products

are our core competitiveness

Internal Structure

THE MAIN BENEFITS

A super-large-scaled modern green industrial workshop 260000 square meters, large and medium-sized gold processing, maohan, assembly equipment more than 600 sets.

CONTACT US

MTN Wheel Type Mobile Crushing And Screening PlantTechnical Parameter

TO VIEW MORE
Series Standard Model On board equipment On board equipment Processing Capability (t/h) Transport dimensions (mm)
FOUR COMBINATION MOBILE STATION MTN100Y-2 GZD850X3000/2YK1545 HD72/GYS300 50-100 15000x2650x4500
MTN100Y-3 GZDT0835/3HX1548 HDX86/SC100F1 50-100 17500x2500x4000
MTN150Y-3 GZDT0835/3HX1548 HDX86/SC160F1 70-150 17500x2500x4000
MTN150R-3 GZDT0835/3HX1548 HDX86/CI1110 60-150 17500x2500x4000
MOBILE COARSE CRUSHING STATION MTN96 GZDT9538 CJ96 70-200 13000x2950x4250
MTN98 GZDT9538 HDX98 80-200 13000x2950x4250
MTN106 GZDT1145A CJ106 90-300 14000x3000x4400
MTN110 GZDT1145A HDX110 120-300 14000x3000x4400
MTN1213C GZDT9538 CI1213 80-200 13000x2950x4250
MTN1316C GZDT1145A CI1316 100-300 14000x3000x4400
MOBILE MEDIUM AND FINE CRUSHING STATION MTN300 - HPM300C1 100-200 15500x2900x4200
MTN400 - HPM400C3 150-300 16500x3100x4300
MTN250 - SC250F1 90-200 16500x3100x4300
MTN1213 - CI1213 80-200 16000x2900x4300
MTN1316 - CI1316 100-300 16500x3100x4500
MTN0926 - HVI0926 85-200 16500x3100x4300
MTN1040 - HVI1040 120-300 16500x3100x4400
MOBILE SCREENING STATION MTN1865-3 - 3HX1865 65-200 14500x2900x4000
MTN2165-3 - 3HX2165 85-300 15000x2900x4400
MOBILE STATION FOR MEDIUM AND FINE CRUSHING AND SCREENING MTN300S-3SII 3HX1865 HPM300C1 100-200 15000x3000x4000
MTN300S-3 3HX2165 HPM300C1 100-200 15000x3000x4000
MTN400S-3 3HX2165 HPM400C3 150-300 15000x3000x4000
MTNG400S-3SII 3HX1865 GYS400C1 100-200 15000x3000x4000
MTNG400S-3 3HX2165 GYS400C1 100-200 15000x3000x4000
MTN250S-3 3HX2165 SC250F1 90-200 15000x3000x4200
MTN1213S-3 3HX1865 CI1213 80-200 15000x3000x4200
MTN1316S-3 3HX2165 CI1316 100-300 15000x3000x4200
MTN0926S-2 2HX1865 HVI0926 85-200 18000x3000x4200
MTN1040S-2 2HX2165 HVI1040 120-300 18000x3000x4200
THREE COMBINATION MOBILE STATION MTN1213-III GZDT9538/3HX1865 CI1213 80-200 18200x2800x4350
MTN1316-III GZDT1145A/3HX2165 CI1316 100-300 18200x3000x4200
MTN1410-III GZDT9538/3HX1865 PCZ1410 80-200 18200x2800x4200
MTN1612-III GZDT1145A/3HX2165 PCZ1612 100-300 18200x3000x4200
Series Standard Model Processing Capability
(t/h)
Transport dimensions
(mm)
FOUR COMBINATION MOBILE STATION MTN100Y-2 50-100 15000x2650x4500
MTN100Y-3 50-100 17500x2500x4000
MTN150Y-3 70-150 17500x2500x4000
MTN150R-3 60-150 17500x2500x4000
MOBILE COARSE CRUSHING STATION MTN96 70-200 13000x2950x4250
MTN98 80-200 13000x2950x4250
MTN106 90-300 14000x3000x4400
MTN110 120-300 14000x3000x4400
MTN1213C 80-200 13000x2950x4250
MTN1316C 100-300 14000x3000x4400
MOBILE MEDIUM AND FINE CRUSHING STATION MTN300 100-200 15500x2900x4200
MTN400 150-300 16500x3100x4300
MTN250 90-200 16500x3100x4300
MTN1213 80-200 16000x2900x4300
MTN1316 100-300 16500x3100x4500
MTN0926 85-200 16500x3100x4300
MTN1040 120-300 16500x3100x4400
MOBILE SCREENING STATION MTN1865-3 65-200 14500x2900x4000
MTN2165-3 85-300 15000x2900x4400
MOBILE STATION FOR MEDIUM AND FINE CRUSHING AND SCREENING MTN300S-3SII 100-200 15000x3000x4000
MTN300S-3 100-200 15000x3000x4000
MTN400S-3 150-300 15000x3000x4000
MTNG400S-3SII 100-200 15000x3000x4000
MTNG400S-3 100-200 15000x3000x4000
MTN250S-3 90-200 15000x3000x4200
MTN1213S-3 80-200 15000x3000x4200
MTN1316S-3 100-300 15000x3000x4200
MTN0926S-2 85-200 18000x3000x4200
MTN1040S-2 120-300 18000x3000x4200
THREE COMBINATION MOBILE STATION MTN1213-III 80-200 18200x2800x4350
MTN1316-III 100-300 18200x3000x4200
MTN1410-III 80-200 18200x2800x4200
MTN1612-III 100-300 18200x3000x4200
